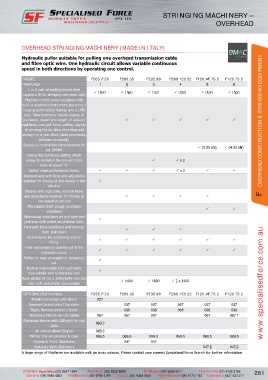

Page 271 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

STRINGING MACHINERY –
OVERHEAD

OVERHEAD STRINGING MACHINERY (MADE IN ITALY)

Hydraulic puller suitable for pulling one overhead transmission cable
and fibre optic wire. One hydraulic circuit allows variable continuous
speed in both directions by operating one control.

MODEL F265.P.20 F280.35 F235.90 F260.150.22 F120.AF.75.2 F120.75.2
FEATURES 1 2 3 4 5 6
1 or 2 pair of multi-grooved steel
capstans fit for stringing one steel rope  (1pr)  (1pr)  (1pr)  (2pr)  (1pr)  (1pr)
Machine control panel equipped with
built-in electronic instrument featuring a
large graphic colour display and a USB
port. Main functions include display of
pull-force, speed and length of cable in     
real time, max pull force setting, display F OVERHEAD CONSTRUCTION & STRINGING EQUIPMENT
of working hours, data recording and
storage on a pen-drive (data processing
software provided).
Device to control low-force tensions fit  (3-25 kN)  (4-30 kN)
for OPGW
Device for pull force setting which
allows to maintain the pre-set force   x 2
even at speed “0”
Safety negative hydraulic brake.     x 2  
Damped axle with tires and adjustable
drawbar for towing at low speed in the 
job-site.
Chassis with rigid axle, manual brake
and detachable drawbar for towing at    
low speed in job-site
Mechanical front plough and back
stabilisers  
Mechanical stabilisers on pull side and
jack-arm with wheel on drawbar side. 
Hydraulic back stabilisers and manual
front stabilisers   
Attachments for anchoring and for
lifting.      
Heat exchanger to cool the oil in the
hydraulic circuit.      
Pulley for rope arranged for telescopic
rod. 
Built-in reel-winder with automatic
rope-winder and extractable reel. 
Reel-winder fit for a 1400/1600-mm-dia
reel, with automatic rope-winder  1400  1600  2 x 1400 www.specialisedforce.com.au

OPTIONS (Part Number) F265.P.20 F280.35 F235.90 F260.150.22 F120.AF.75.2 F120.75.2
Metallic coverage with doors 027
Remote Control with 10m cable 037 037 037 037 037
Radio Remote control (100m) 038 038 038 038 038
Telescopic Rod to lay UG cables 067 067 067 067 067.1
Electronic device with USB port for pull 069.2
data
Air cooled diesel Engine 028.3
Printer c/w accessories & case 069.5 069.5 069.5 069.5 069.5 069.5
Hydraulic Front Stabilisers 047 047
Hydraulic Back Stabilisers 047.2 047.2
A large range of Machines are available with an array options. Please contact your nearest Specialised Force Branch for further information
