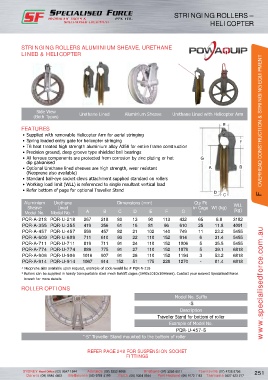

STRINGING ROLLERS –
HELICOPTER

STRINGING ROLLERS ALUMINIUM SHEAVE, URETHANE
LINED & HELICOPTER

Side View Urethane Lined Aluminium Sheave Urethane Lined with Helicopter Arm
(Both Types)
E F OVERHEAD CONSTRUCTION & STRINGING EQUIPMENT
FEATURES
• Supplied with removable Helicopter Arm for aerial stringing
• Spring loaded entry gate for helicopter stringing F
• T6 heat treated high strength aluminium alloy A356 for entire frame construction
• Precision ground, deep groove type shielded ball bearings
• All ferrous components are protected from corrosion by zinc plating or hot G
dip galvanised
• Optional Urethane lined sheaves are high strength, wear resistant A B
(Neoprene also available)
• Standard ball-eye socket clevis attachment supplied standard on rollers
• Working load limit (WLL) is referenced to single resultant vertical load
• Refer bottom of page for optional Traveller Stand D
C
Aluminium Urethane Dimensions (mm) Qty Fit WLL
Sheave Lined in Cage Wt (kg) (kg)
Model No. Model No. ¹ A B C D E F G ²
PQR-A-218 PQR-U-218 267 218 80 13 90 113 432 65 6.8 3182
PQR-A-355 PQR-U-355 419 356 61 16 81 96 610 25 11.8 4091
PQR-A-457 PQR-U-457 559 457 82 21 102 140 749 11 23.2 5455
PQR-A-609 PQR-U-609 711 610 90 22 110 152 914 6 31.4 5455
PQR-A-711 PQR-U-711 819 711 91 24 110 152 1006 5 35.5 5455
PQR-A-774 PQR-U-774 889 775 91 27 110 152 1079 5 39.1 6818
PQR-A-906 PQR-U-906 1016 907 91 26 110 152 1194 3 53.2 6818
PQR-A-914 PQR-U-914 1067 914 152 51 175 228 1270 - 81.4 6818
¹ Neoprene also available upon request, example of code would be # PQR-N-218
² Rollers can be supplied in handy transportable steel mesh forklift cages (1090x1010x1000mm). Contact your nearest Specialised Force
branch for more details.

ROLLER OPTIONS www.specialisedforce.com.au
Model No. Suffix
-S
Description
Traveller Stand for bottom of roller
Example of Model No.
PQR-U-457-S
“-S” Traveller Stand mounted to the bottom of roller

REFER PAGE 248 FOR SUSPENSION SOCKET
FITTINGS
