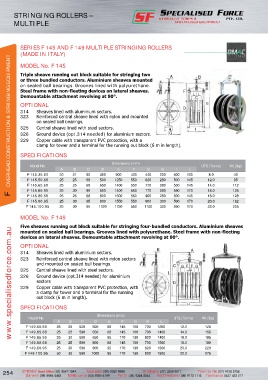

Page 264 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

STRINGING ROLLERS –
MULTIPLE

SERIES F 145 AND F 149 MULTIPLE STRINGING ROLLERS
(MADE IN ITALY)
F OVERHEAD CONSTRUCTION & STRINGING EQUIPMENT
MODEL No. F 145

Triple sheave running out block suitable for stringing two A B
or three bundled conductors. Aluminium sheaves mounted
on sealed ball bearings. Grooves lined with polyurethane.
Steel frame with non-fleeting devices on lateral sheaves. F
Demountable attachment revolving at 90°. L L
C
OPTIONAL D E
314 Sheaves lined with aluminium sectors.
323 Reinforced central sheave lined with nylon and mounted
on sealed ball bearings.
325 Central sheave lined with steel sectors. H I
326 Ground device (opt.314 needed) for aluminium sectors. G
329 Copper cable with transparent PVC protection, with a
clamp for tower and a terminal for the running out block (6 m in length).

SPECIFICATIONS
Dimensions (mm)
Model No. UTS (Tonne) Wt (kg)
A B C D E F G H I L
F 145.35.60 20 21 60 350 900 400 440 200 400 100 8.0 40
F 145.50.68 25 25 68 500 1250 550 630 280 500 145 12.0 95
F 145.65.68 25 25 68 650 1400 550 770 280 500 145 14.0 112
F 145.65.95 25 30 95 650 1400 550 770 280 590 170 18.0 125
F 145.80.68 25 25 68 800 1500 550 900 280 500 145 18.0 128
F 145.80.95 25 30 95 800 1550 550 900 300 590 170 20.0 162
F 145.100.95 25 30 95 1000 1750 550 1100 300 590 170 22.0 205

MODEL No. F 149

Five sheaves running out block suitable for stringing four-bundled conductors. Aluminium sheaves
www.specialisedforce.com.au
mounted on sealed ball bearings. Grooves lined with polyurethane. Steel frame with non-fleeting
devices on lateral sheaves. Demountable attachment revolving at 90°.
OPTIONAL
314 Sheaves lined with aluminium sectors. B A
323 Reinforced central sheave lined with nylon sectors
and mounted on sealed ball bearings. C G F F G
325 Central sheave lined with steel sectors. L E
326 Ground device (opt.314 needed) for aluminium
sectors D
329 Copper cable with transparent PVC protection, with
a clamp for tower and a terminal for the running
out block (6 m in length).
H
SPECIFICATIONS
Dimensions (mm)
Model No. UTS (Tonne) Wt (kg)
A B C D E F G H L
F 149.50.68 25 25 520 500 68 145 100 700 1250 12.0 128
F 149.65.68 25 25 590 650 68 145 100 700 1400 14.0 158
F 149.65.95 25 30 590 650 95 170 130 820 1400 18.0 185
F 149.80.68 25 25 590 800 68 145 100 700 1560 18.0 180
F 149.80.95 25 30 590 800 95 170 130 820 1560 20.0 220
F 149.100.95 30 30 590 1000 95 170 130 820 1800 22.0 275
