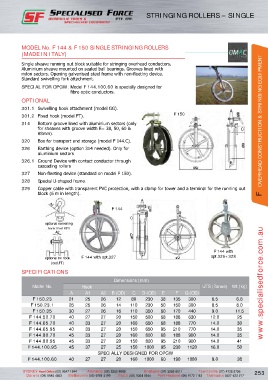

STRINGING ROLLERS – SINGLE

MODEL No. F 144 & F 150 SINGLE STRINGING ROLLERS
(MADE IN ITALY)

Single sheave running out block suitable for stringing overhead conductors.
Aluminium sheave mounted on sealed ball bearings. Grooves lined with
nylon sectors. Opening galvanised steel frame with non-fleeting device.
Standard swivelling fork attachment.
SPECIAL FOR OPGW: Model F 144.100.60 is specially designed for
fibre optic conductors.
OPTIONAL
301.1 Swivelling hook attachment (model GG). A
301.2 Fixed hook (model FT). F 150
314 Bottom groove lined with aluminium sectors (only F OVERHEAD CONSTRUCTION & STRINGING EQUIPMENT
for sheaves with groove width E= 38, 50, 60 & C
68mm).
320 Box for transport and storage (model F 144.C).
326 Earthing device (option 314 needed). Only for
aluminium sectors
326.1 Ground Device with contact conductor through E
cascading rollers F
327 Non-fleeting device (standard on model F 150).
328 Special U-shaped frame.
329 Copper cable with transparent PVC protection, with a clamp for tower and a terminal for the running out
block (6 m in length).
A
A1
F 144 B

C
optional swivelling
hook (cod.GG)
A2
D

F 144 with
E
optional fix hook F 144 with opt.327 F G opt.326+328
(cod.FT)
SPECIFICATIONS

Dimensions (mm)
Model No. Hook UTS (Tonne) Wt (kg) www.specialisedforce.com.au
A A1 A2 B (OD) C D (OD) E F G (OD)
F 150.23 21 25 26 12 80 230 38 135 300 6.5 6.8
F 150.23.1 25 25 26 14 110 230 50 150 300 8.5 8.0
F 150.35 30 27 26 16 110 350 60 170 440 9.0 11.5
F 144.50.70 40 27 27 20 150 500 68 188 630 12.0 25
F 144.65.70 40 33 27 20 160 650 68 188 770 14.0 30
F 144.65.95 40 33 27 20 150 650 95 210 770 14.0 35
F 144.80.70 45 33 27 20 160 800 68 188 900 14.0 35
F 144.80.95 45 33 27 20 150 800 95 210 900 14.0 41
F 144.100.95 45 37 27 25 150 1000 95 230 1120 16.0 50
SPECIALLY DESIGNED FOR OPGW
F 144.100.60 40 27 27 20 160 1000 60 190 1080 9.0 38
