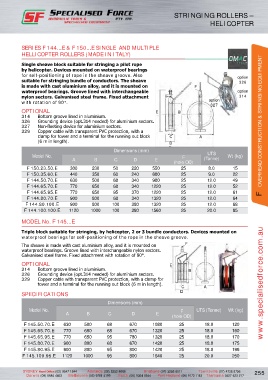

STRINGING ROLLERS –
HELICOPTER

SERIES F 144...E & F 150...E SINGLE AND MULTIPLE
HELLICOPTER ROLLERS (MADE IN ITALY)

Single sheave block suitable for stringing a pilot rope
by helicopter. Devices mounted on waterproof bearings
for self-positioning of rope in the sheave groove. Also option
suitable for stringing bundle of conductors. The sheave 326
is made with cast aluminium alloy, and it is mounted on F
waterproof bearings. Groove lined with interchangeable option
nylon sectors. Galvanised steel frame. Fixed attachment 314
with rotation of 90°. option
327
OPTIONAL E B
314 Bottom groove lined in aluminium.
326 Grounding device (opt.314 needed) for aluminium sectors.
327 Non-fleeting device for aluminium sectors. F OVERHEAD CONSTRUCTION & STRINGING EQUIPMENT
329 Copper cable with transparent PVC protection, with a
clamp for tower and a terminal for the running out block C A
(6 m in length). D

Dimensions (mm)
Model No. F UTS Wt (kg)
A B C D E (Tonne)
(hole OD)
F 150.23.50.E 300 230 50 220 550 25 8.0 15
F 150.35.60.E 440 350 60 240 680 25 9.0 22
F 144.50.70.E 630 500 68 340 980 25 12.0 49
F 144.65.70.E 770 650 68 340 1220 25 12.0 52
F 144.65.95.E 770 650 95 370 1220 25 12.0 61
F 144.80.70.E 900 800 68 340 1320 25 12.0 64
F 144.80.100.E 900 800 100 380 1320 25 12.0 68
F 144.100.100.E 1120 1000 100 380 1560 25 20.0 85

MODEL No. F 145...E

Triple block suitable for stringing, by helicopter, 2 or 3 bundle conductors. Devices mounted on
waterproof bearings for self-positioning of the rope in the sheave groove.
The sheave is made with cast aluminium alloy, and it is mounted on F
waterproof bearings. Groove lined with interchangeable nylon sectors.
Galvanised steel frame. Fixed attachment with rotation of 90°.
OPTIONAL E
314 Bottom groove lined in aluminium. B
326 Grounding device (opt.314 needed) for aluminium sectors.
329 Copper cable with transparent PVC protection, with a clamp for
tower and a terminal for the running out block (6 m in length). www.specialisedforce.com.au
C A
SPECIFICATIONS D

Dimensions (mm)
Model No. F UTS (Tonne) Wt (kg)
A B C D E
(hole OD)
F 145.50.70.E 630 500 68 670 1080 25 18.0 120
F 145.65.70.E 770 650 68 670 1320 25 18.0 160
F 145.65.95.E 770 650 95 780 1320 25 18.0 170
F 145.80.70.E 900 800 68 670 1420 25 18.0 175
F 145.80.95.E 900 800 95 800 1420 25 18.0 196
F 145.100.95.E 1120 1000 95 800 1640 25 20.0 250
