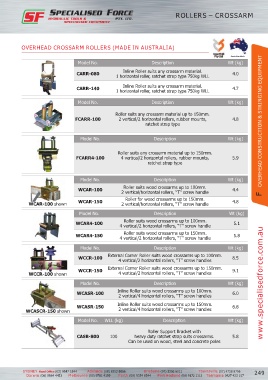

Page 259 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

ROLLERS – CROSSARM

OVERHEAD CROSSARM ROLLERS (MADE IN AUSTRALIA)

Australian Made
Model No. Description Wt (kg)

Inline Roller suits any crossarm material.
CARR-080 1 horizontal roller, ratchet strap type 750kg WLL 4.0

Inline Roller suits any crossarm material.
CARR-140 1 horizontal roller, ratchet strap type 750kg WLL 4.7

Model No. Description Wt (kg)

Roller suits any crossarm material up to 150mm.
FCARR-100 2 vertical/2 horizontal rollers, rubber mounts, 4.8
ratchet strap type F OVERHEAD CONSTRUCTION & STRINGING EQUIPMENT

Model No. Description Wt (kg)

Roller suits any crossarm material up to 150mm.
FCARR4-100 4 vertical/2 horizontal rollers, rubber mounts, 5.9
ratchet strap type

Model No. Description Wt (kg)
Roller suits wood crossarms up to 100mm.
WCAR-100 2 vertical/horizontal rollers, “T” screw handle 4.4
WCAR-150 Roller for wood crossarms up to 150mm. 4.8
WCAR-100 shown 2 vertical/horizontal rollers, “T” screw handle
Model No. Description Wt (kg)

WCAR4-100 Roller suits wood crossarms up to 100mm. 5.1
4 vertical/2 horizontal rollers, “T” screw handle
WCAR4-150 Roller suits wood crossarms up to 150mm. 5.8
4 vertical/2 horizontal rollers, “T” screw handle

Model No. Description Wt (kg)
WCCR-100 External Corner Roller suits wood crossarms up to 100mm. 8.5
4 vertical/2 horizontal rollers, “T” screw handles

WCCR-150 External Corner Roller suits wood crossarms up to 150mm. 9.1
WCCR-100 shown 4 vertical/2 horizontal rollers, “T” screw handles

Model No. Description Wt (kg) www.specialisedforce.com.au
Inline Roller suits wood crossarms up to 100mm.
WCASR-100 6.0
2 vertical/4 horizontal rollers, “T” screw handles
Inline Roller suits wood crossarms up to 150mm.
WCASR-150 6.8
WCASCR-150 shown 2 vertical/4 horizontal rollers, “T” screw handles

Model No. WLL (kg) Description Wt (kg)

Roller Support Bracket with
CASB-800 100 heavy duty ratchet strap suits crossarms. 5.8
Can be used on wood, steel and concrete poles
