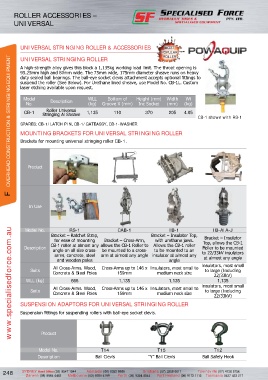

ROLLER ACCESSORIES –
UNIVERSAL

UNIVERSAL STRINGING ROLLER & ACCESSORIES MOST
POPULAR
F OVERHEAD CONSTRUCTION & STRINGING EQUIPMENT
UNIVERSAL STRINGING ROLLER ROLLER
A high-strength alloy gives this block a 1,135kg working load limit. The throat opening is
95.25mm high and 80mm wide. The 75mm wide, 175mm diameter sheave runs on heavy
duty sealed ball bearings. The ball-eye socket clevis attachment accepts optional fittings to
suspend the roller (See Below). For Urethane lined sheave, use Model No. CB-1L. Custom
laser etching available upon request.

Model WLL Bottom of Height (mm) Width Wt
No. Description (kg) Groove X (mm) Inc Socket (mm) (kg)
Roller Universal
CB-1 Stringing Al Sheave 1,135 110 370 205 4.05
CB-1 shown with RS-1
SPARES: CB-1/LATCH PIN, CB-1/GATEASSY, CB-1-WASHER
MOUNTING BRACKETS FOR UNIVERSAL STRINGING ROLLER
Brackets for mounting universal stringing roller CB-1.

Product

In Use

www.specialisedforce.com.au
Model No. RS-1 CAB-1 IB-1 IB-AIA-J
Bracket – Ratchet Strap, Bracket – Insulator Top,
Bracket – Insulator
for ease of mounting Bracket – Cross-Arm, with urethane jaws. Top, allows the CB-1
Description CB-1 roller at almost any allows the CB-1 Roller to Allows the CB-1 roller Roller to be mounted
angle on all size cross-
to be mounted to an
be mounted to a cross-
arms, concrete, steel arm at almost any angle insulator at almost any to 22/33kV insulators
and wooden poles angle at almost any angle
Insulators, most small
All Cross-Arms. Wood, Cross-Arms up to 146 x Insulators, most small to
Suits Concrete & Steel Poles 159mm medium neck size to large (Including
22/33kV)
WLL (kg) 666 1,135 1,135 1,135
All Cross-Arms. Wood, Cross-Arms up to 146 x Insulators, most small to Insulators, most small
Suits Concrete & Steel Poles 159mm medium neck size to large (Including
22/33kV)
SUSPENSION ADAPTORS FOR UNIVERSAL STRINGING ROLLER

Suspension fittings for suspending rollers with ball-eye socket clevis.

Product

Model No. T14 T15 T12
Description Ball Clevis “Y” Ball Clevis Ball Safety Hook
