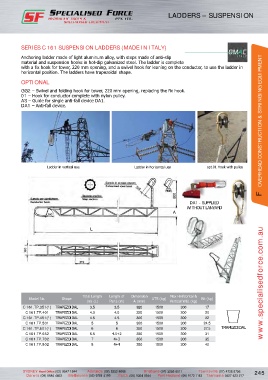

Page 255 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

LADDERS – SUSPENSION

SERIES C 161 SUSPENSION LADDERS (MADE IN ITALY)

Anchoring ladder made of light aluminum alloy, with steps made of anti-slip
material and suspension hooks in hot-dip galvanized steel. The ladder is complete
with a fix hook for tower, 220 mm opening, and a swivel hook for leaning on the conductor, to use the ladder in
horizontal position. The ladders have trapezoidal shape.

OPTIONAL
GG2 – Swivel and folding hook for tower, 220 mm opening, replacing the fix hook.
01 – Hook for conductor complete with nylon pulley.
AS – Guide for single anti-fall device DA1.
DA1 – Anti-fall device. F OVERHEAD CONSTRUCTION & STRINGING EQUIPMENT

Ladder in vertical use Ladder in horizontal use opt.01 Hook with pulley

DA1 - SUPPLIED
WITHOUT LANYARD
A

L

Total Length Length of Dimension Max Horizontal & www.specialisedforce.com.au
Model No. Shape UTS (kg) Wt (kg)
(m) (L) Parts (m) A (mm) Vertical WLL (kg)
C 161.TP.351(¹) TRAPEZOIDAL 3.5 3.5 320 1500 300 17
C 161.TP.401 TRAPEZOIDAL 4.0 4.0 320 1500 300 20
C 161.TP.451(¹) TRAPEZOIDAL 4.5 4.5 320 1500 300 22
C 161.TP.501 TRAPEZOIDAL 5 5 320 1500 300 24.5
C 161.TP.601(¹) TRAPEZOIDAL 6 6 350 1500 300 27.5 TRAPEZOIDAL
C 161.TP.652 TRAPEZOIDAL 6.5 4.5+2 350 1500 300 31
C 161.TP.702 TRAPEZOIDAL 7 4+3 350 1500 300 35
C 161.TP.802 TRAPEZOIDAL 8 4+4 350 1500 300 40
