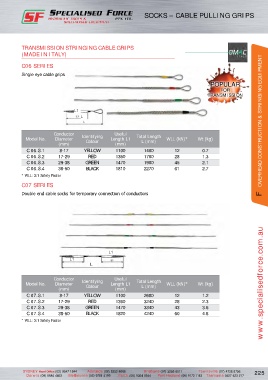

Page 235 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

SOCKS – CABLE PULLING GRIPS

TRANSMISSION STRINGING CABLE GRIPS
(MADE IN ITALY)

C06 SERIES

Single eye cable grips
POPULAR
FOR
TRANSMISSION

L1
L

Conductor Useful F OVERHEAD CONSTRUCTION & STRINGING EQUIPMENT
Model No. Diameter Identifying Length L1 Total Length WLL (kN)* Wt (kg)
(mm) Colour (mm) L (mm)
C 06.S.1 8-17 YELLOW 1100 1400 12 0.7
C 06.S.2 17-29 RED 1350 1700 28 1.3
C 06.S.3 29-38 GREEN 1470 1900 45 2.1
C 06.S.4 38-50 BLACK 1810 2270 61 2.7
* WLL: 3:1 Safety Factor
C07 SERIES

Double end cable socks for temporary connection of conductors

L1
L1
L

Conductor Useful
Model No. Diameter Identifying Length L1 Total Length WLL (kN)* Wt (kg) www.specialisedforce.com.au
(mm) Colour (mm) L (mm)
C 07.S.1 8-17 YELLOW 1100 2680 12 1.2
C 07.S.2 17-29 RED 1360 3240 28 2.3
C 07.S.3 29-38 GREEN 1470 3340 43 3.6
C 07.S.4 38-50 BLACK 1820 4240 60 4.8
* WLL: 3:1 Safety Factor
