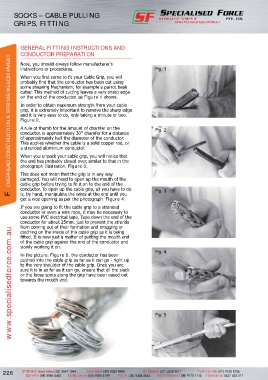

SOCKS – CABLE PULLING
       GRIPS, FITTING





          GENERAL FITTING INSTRUCTIONS AND
          CONDUCTOR PREPARATION
      F    OVERHEAD CONSTRUCTION & STRINGING EQUIPMENT
          Note, you should always follow manufacturer’s
          instructions or procedures.                                 Fig. 1
          When you first come to fit your Cable Grip, you will
          probably find that the conductor has been cut using
          some shearing Mechanism, for example a parrot beak
          cutter. This method of cutting leaves a very sharp edge
          on the end of the conductor, as Figure 1 shows.
          In order to obtain maximum strength from your cable
          grip, it is extremely important to remove the sharp edge
          and it is very easy to do, only taking a minute or two.
          Figure 2.

          A rule of thumb for the amount of chamfer on the            Fig. 2
          conductor, is approximately 30° chamfer for a distance
          of approximately half the diameter of the conductor.
          This applies whether the cable is a solid copper rod, or
          a stranded aluminium conductor.
          When you unpack your cable grip, you will notice that
          the end has probably closed over, similar to that in the
          photograph illustration. Figure 3.
          This does not mean that the grip is in any way
          damaged. You will need to open up the mouth of the
          cable grip before trying to fit it on to the end of the
          conductor. To open up the cable grip, all you have to do    Fig. 3
          is, by hand, manipulate the wires at the end until you
          get a nice opening as per the photograph. Figure 4.
          If you are going to fit the cable grip to a stranded
          conductor or even a wire rope, it may be necessary to
          use some PVC electrical tape. Tape down the end of the
          conductor for about 25mm. just to prevent the strands
          from coming out of their formation and snagging or
      www.specialisedforce.com.au
          catching on the inside of the cable grip as it is being
          fitted. It is now just a matter of putting the mouth end
          of the cable grip against the end of the conductor and
          slowly working it on.
                                                                      Fig. 4
          In the picture, Figure 5, the conductor has been
          pushed into the cable grip as far as it can go - right up
          to the very shoulder of the cable grip. Once you are
          sure it is in as far as it can go, ensure that all the slack
          or the loose spots along the grip have been eased out
          towards the mouth end.







                                                                      Fig. 5
