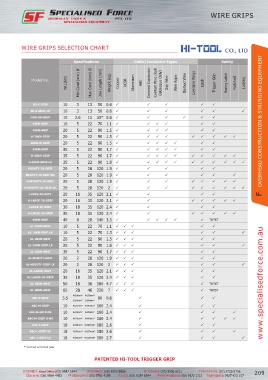

Page 219 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

WIRE GRIPS

WIRE GRIPS SELECTION CHART

Specifications Cable/Conductor Types Safety

WLL(kN) Min Cond (mm) Ø Max Cond (mm) Ø Jaw Length (mm) Weight (kg) Copper ACSR Aluminium ABC Covered Conductor Contact Wire (Rail Catalogue Only) Guy Wire Wire Rope Barbed Wire Live Line Rings Latch Trigger Grip Spring Latch Notched Locking
Model No.

SD-S-GRIP 10 3 13 50 0.6 P P P P P
SD-S-GRIP-LK 10 3 13 50 0.6 P P P P P P
NEW-SD-GRIP 10 2.6 15 50* 0.6 P P P P P P
10KN-GRIP 10 5 22 70 1.1 P P P P P P F OVERHEAD CONSTRUCTION & STRINGING EQUIPMENT
20KN-GRIP 20 5 22 90 1.5 P P P P P P
H-20KN-GRIP 20 5 22 90 1.5 P P P P P P P P P
20KN-W-GRIP 20 5 22 90 1.5 P P P P P P P
35KN-GRIP 35 5 22 90 1.7 P P P P P P P
H-35KN-GRIP 35 5 22 90 1.7 P P P P P P P P P P
H-35KN-GRIP-LK 35 5 22 90 1.8 P P P P P P P P P P P
MIGHTY-20-GRIP 20 5 28 120 1.9 P P P P P
MIGHTY-20-GRIP-NS 20 5 28 120 1.9 P P P P P P
H-MIGHTY-20-GRIP 20 5 28 120 1.9 P P P P P P P P
H-MIGHTY-20-GRIP-LK 20 5 28 120 2 P P P P P P P P P
LARGE-20-GRIP 20 16 35 120 2.1 P P P P
H-LARGE-20-GRIP 20 16 35 120 2.1 P P P P P P P
LARGE-30-GRIP 30 18 35 120 2.4 P P P P
H-LARGE-30-GRIP 30 18 35 120 2.4 P P P P P P P
40KN-GRIP 40 8 28 140 3.5 P P P P P P TWIST
AL-10KN-GRIP 10 5 22 70 1.1 P P P P P
AL-10KN-GRIP-LK 10 5 22 70 1.3 P P P P P P
AL-20KN-GRIP 20 5 22 90 1.5 P P P P P
AL-20KN-GRIP-LK 20 5 22 90 1.6 P P P P P P
AL-35KN-GRIP 35 5 22 90 1.7 P P P P P
AL-MIGHTY-GRIP 20 2 28 120 1.9 P P P P P
AL-MIGHTY-GRIP-LK 20 2 28 120 2 P P P P P P
AL-LARGE-GRIP 20 16 35 120 2.1 P P P P P
AL-LARGE-30-GRIP 30 18 35 120 2.4 P P P P P
AL-50KN-GRIP 50 18 36 180 4.7 P P P P TWIST www.specialisedforce.com.au
AL-60KN-GRIP 60 28 46 220 7 P P P P TWIST
4x16mm² 4x35mm²
ABC-S-GRIP 3.5 80 0.6 P P P
2x16mm² 2x50mm²
ABC-M-GRIP 10 4x25mm² 4x95mm² 160 2.4 P P P
ABC-M-GRIP-NS 10 4x25mm² 4x95mm² 160 2.4 P P P P
ABC-M-GRIP-S-NS 10 4x25mm² 4x95mm² 160 2.4 P P P P P
ABC-L-GRIP 18 4x95mm² 4x150mm² 180 2.6 P P P
ABC-L-GRIP-NS 18 4x95mm² 4x150mm² 180 2.6 P P P P
ABC-L-GRIP-LK 18 4x95mm² 4x150mm² 180 2.7 P P P P

* Curved serrated jaw

PATENTED HI-TOOL TRIGGER GRIP
