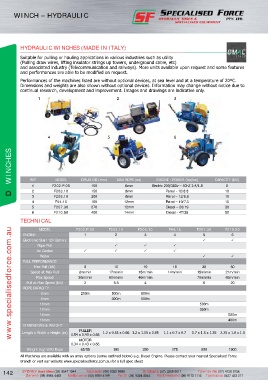

Page 152 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

WINCH – HYDRAULIC

HYDRAULIC WINCHES (MADE IN ITALY)

Suitable for pulling or hauling applications in various industries such as utility
(Pulling draw wires, lifting insulator strings up towers, underground cable, etc)
and associated industry (Telecommunication and railways). More units available upon request and some features
and performances are able to be modified on request.

Performances of the machines listed are without optional devices, at sea level and at a temperature of 20ºC.
Dimensions and weights are also shown without optional devices. Information may change without notice due to
continual research, development and improvement. Images and drawings are indicative only.
1 2 3

4 5 6

D WINCHES REF F202.P.08 DRUM OD (mm) MAX ROPE (od) Electric 200/380v – 50hZ 2.4/1.8 CAPACITY (kN)

ENGINE - POWER (hp/kw)
MODEL
100
6mm
1
8
2
8mm
Petrol - 12/8.8
F206.10
200
3
8mm
10
4 F203.10 150 12mm Petrol – 12/8.8 10
F44.15
15
160
Petrol – 10/7.3
5 F207.30 270 12mm Diesel – 26/19 30
6 F210.50 400 14mm Diesel - 47/35 50
TECHNICAL
www.specialisedforce.com.au
MODEL F202.P.08 F203.10 F206.10 F44.15 F207.30 F210.50
ENGINE 1 2 3 4 5 6
Electronic Start 12V Battery  
Rope Pull   
Air Cooled    
Water  
PULL PERFORMANCE
Max Pull (kN) 8 10 10 18 30 50
Speed at Max Pull 6m/min 17m/min 15m/min 14m/min 15m/min 21m/min
Max Speed 30m/min 60m/min 40m/min 70m/min 65m/min
Pull at Max Speed (kN) 2 5.5 4 6 20
ROPE CAPACITY
6mm 200m 500m 800m
8mm 300m 500m
10mm 500m
12mm 350m
14mm 500m
16mm 400m
DIMENSIONS & WEIGHT
PULLER
Length x Width x Height (m) 0.54 x 0.43 x 0.66 1.2 x 0.55 x 0.66 1.2 x 1.05 x 0.85 1.1 x 0.7 x 0.7 1.7 x 1.5 x 1.35 2.25 x 1.8 x 1.5
MOTOR
0.34 x 0.43 x 0.66
Weight (kg) W/O Rope 65/55 190 350 175 950 1900
All Machines are available with an array options (some outlined below) e.g. Diesel Engine. Please contact your nearest Specialised Force
Branch or visit our website www.specialisedforce.com.au for a full spec sheet
