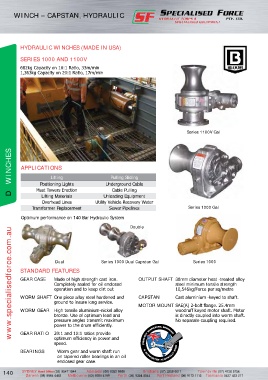

Page 150 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

WINCH – CAPSTAN, HYDRAULIC

HYDRAULIC WINCHES (MADE IN USA)

SERIES 1000 AND 1100V

682kg Capacity on 10:1 Ratio, 33m/min
1,363kg Capacity on 20:1 Ratio, 17m/min

Series 1100V Gal

D WINCHES APPLICATIONS Underground Cable

Lifting
Pulling Sliding
Positioning Lights
Cable Pulling
Mast Towers Erection
Unloading Equipment
Lifting Materials
Overhead Lines Utility Vehicle Recovery Water
Transformer Replacement Sewer Pipelines Series 1000 Gal
Optimum performance on 140 Bar Hydraulic System

Double
www.specialisedforce.com.au

Dual Series 1000 Dual Capstan Gal Series 1000
STANDARD FEATURES
GEAR CASE Made of high strength cast iron. OUTPUT SHAFT 38mm diameter heat -treated alloy
Completely sealed for oil enclosed steel minimum tensile strength
operation and to keep dirt out 10,546kg/Force per sq/metre

WORM SHAFT One piece alloy steel hardened and CAPSTAN Cast aluminium -keyed to shaft.
ground to insure long service.
MOTOR MOUNT SAE(A) 2-bolt flange. 25.4mm
WORM GEAR High tensile aluminium-nickel alloy woodruff keyed motor shaft. Motor
bronze. Use of optimum lead and is directly coupled into worm shaft.
pressure angles transmit maximum No separate coupling required.
power to the drum efficiently.

GEAR RATIO 20:1 and 10:1 ratios provide
optimum efficiency in power and PROUDLY MARKETED, SERVICED
speed.
& SUPPORTED AUSTRALIA WIDE
BEARINGS Worm gear and worm shaft run
on tapered roller bearings in an oil
enclosed gear case.
