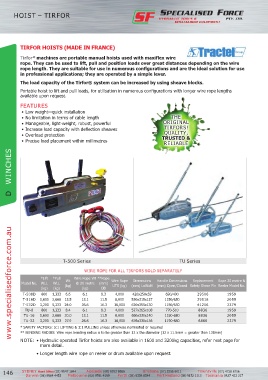

Page 156 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19
P. 156
HOIST – TIRFOR
TIRFOR HOISTS (MADE IN FRANCE)
Tirfor machines are portable manual hoists used with maxiflex wire
®
rope. They can be used to lift, pull and position loads over great distances depending on the wire
rope length. They are suitable for use in numerous configurations and are the ideal solution for use
in professional applications; they are operated by a simple lever.
The load capacity of the Tirfor® system can be increased by using sheave blocks.
Portable hoist to lift and pull loads, for utilisation in numerous configurations with longer wire rope lengths
available upon request.
FEATURES
• Low weight—quick installation
• No limitation in terms of cable length THE
• Manageable, light-weight, robust, powerful ORIGINAL
• Increase load capacity with deflection sheaves TIRFORS!
QUALITY,
• Overload protection TRUSTED &
• Precise load placement within millimetres RELIABLE
D WINCHES
www.specialisedforce.com.au
T-500 Series TU Series
WIRE ROPE FOR ALL TIRFORS SOLD SEPARATELY
*Lift *Pull Wire Rope Wt **Rope
Model No. WLL WLL Wt @ 20 metre (mm) Wire Rope Dimensions Handle Dimensions Replacement Rope 20 metre &
(kg) (kg) (kg) (kg) OD UTS (kg) (mm) LxWxH (mm) Open/Closed Safety Shear Pin Reeler Model No.
T-508D 800 1,333 6.6 6.1 8.3 4,000 420x250x59 690/400 29506 1959
T-516D 1,600 2,666 13.5 13.1 11.5 8,000 530x315x127 1150/650 29516 2059
T-532D 3,200 5,333 24.0 26.6 16.3 16,000 620x355x130 1150/650 41206 2379
TU-8 800 1,333 8.4 6.1 8.3 4,000 527x265x108 770-510 8836 1959
TU-16 1,600 2,666 20.0 13.1 11.5 8,000 660x330x140 1190-680 8836 2059
TU-32 3,200 5,333 27.0 26.6 16.3 16,000 676x330x156 1190-680 6866 2379
* SAFETY FACTORS: 5:1 LIFTING & 3:1 PULLING unless otherwise nominated or required
** BENDING RADIUS: Wire rope bending radius is to be greater than 12 x the diameter (12 x 11.5mm = greater than 138mm)
NOTE: • Hydraulic operated Tirfor hoists are also available in 1600 and 3200kg capacities, refer next page for
more detail.
• Longer length wire rope on reeler or drum available upon request.
