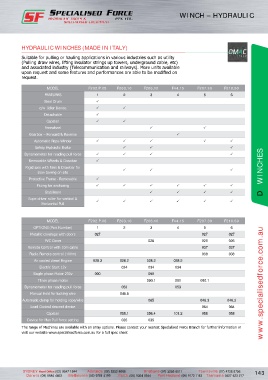

Page 153 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

WINCH – HYDRAULIC

HYDRAULIC WINCHES (MADE IN ITALY)

Suitable for pulling or hauling applications in various industries such as utility
(Pulling draw wires, lifting insulator strings up towers, underground cable, etc)
and associated industry (Telecommunication and railways). More units available
upon request and some features and performances are able to be modified on
request.

MODEL F202.P.08 F203.10 F206.10 F44.15 F207.30 F210.50
FEATURES 1 2 3 4 5 6
Steel Drum 
c/w Idler Device  
Detachable 
Capstan  
Freewheel  
Gearbox – Forward & Reverse 
Automatic Rope-Winder     
Safety Hydraulic Brake   
Dynamometer for reading pull force    
Removable Wheels & Drawbar 
Rigid axle with tires & Drawbar for
slow towing on site    D WINCHES
Protective Frame - Removable 
Fitting for anchoring      
Stabilisers    
Rope driver roller for vertical &
Horizontal Pull      

MODEL F202.P.08 F203.10 F206.10 F44.15 F207.30 F210.50
OPTIONS (Part Number) 1 2 3 4 5 6
Metallic coverage with doors 027 027 027
PVC Cover 026 026 026
Remote Control with 10m cable 037 037
Radio Remote control (100m) 038 038
Air cooled diesel Engine 028.3 028.2 028.2 028.2
Electric Start 12v 034 034 034
Single phase Motor 230v 090 090
Three phase motor 090.1 091 090.1
Dynamometer for reading pull force 053 053 www.specialisedforce.com.au
Manual Hold for locking wire 045.5
Automatic clamp for holding rope/wire 065 046.3 046.3
Load Control descent device 064 064
Capstan 058.1 056.4 101.2 058 058
Device for Max Pull force setting 035 035
The range of Machines are available with an array options. Please contact your nearest Specialised Force Branch for further information or
visit our website www.specialisedforce.com.au for a full spec sheet
