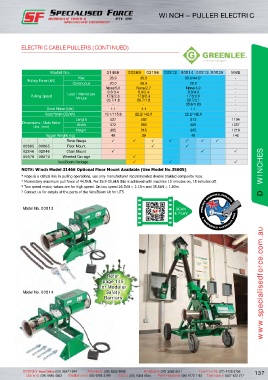

Page 147 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

WINCH – PULLER ELECTRIC

ELECTRIC CABLE PULLERS (CONTINUED)

Model No. 31466 00369 03196 00812 00814 00813 00829 MVB
Max 28.9 35.8 35.6/44.5¹ -
Pulling Force (kN)
Continuous 20.0 28.9 28.9 -
None/5.0 None/2.7 None/4.9 -
8.9/2.4
8.9/4.3
8.8/3.4
Pulling Speed Load / Metres per 17.9/2.3 17.8/2.3 17.8/3.6 - -
Minute
26.7/1.8 26.7/1.8 26.7/2.1 -
- - 35.6/1.83 -
Drive Motor (kW) 1.1 1.1 1.1 -
Rope*(mm OD/kN) 19.1/115.6 22.2/142.0 22.2/142.0 -
Length 527 292 813 1194
Dimensions - Main Motor
Unit (mm) Width 572 660 305 1067
Height 305 215 305 1219
Tugger Weight (kg) 49 39 49 146
- - Force Gauge       
00865 00865 Floor Mount  
02846 02846 Chain Mount   
00870 00870 Wheeled Carriage 
VersiBoom Package   
NOTE: Winch Model 31466 Optional Floor Mount Available (Use Model No.35605) D WINCHES
* Rope is a critical link in pulling operations, use only manufacturer recommended double braided composite rope.
¹ Momentary maximum pull force of 44.5kN. For 28.9-35.6kN this is achieved with machine 15 minutes on, 15 minutes off.
² Two speed motor, values are for high speed. On low speed 26.7kN = 2.13m and 35.6kN = 1.83m.
³ Contact us for details of the parts of the VersiBoom kit for UT5

Model No. 00813 SCAN PROUDLY MARKETED, SERVICED
& PLAY & SUPPORTED AUSTRALIA WIDE

Refer
page 145 www.specialisedforce.com.au
for Modular
Model No. 00814 Safety
Barriers
