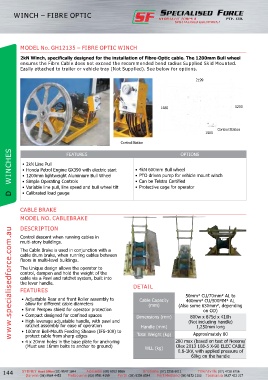

WINCH – FIBRE OPTIC

MODEL No. GH12135 – FIBRE OPTIC WINCH

ensures the Fibre Cable does not exceed the recommended bend radius Supplied Skid Mounted.
Easily attached to trailer or vehicle tray (Not Supplied). See below for options.

2199

1480 1200

Control Station
1500

Control Station OPTIONS
D WINCHES • 2kN Line Pull • 4kN 600mm Bull wheel
FEATURES

• Honda Petrol Engine GX390 with electric start
• PTO driven pump for vehicle mount winch
• 1200mm lightweight Aluminium Bull Wheel
•
• Simple Operating Controls
• Variable line pull, line speed and bull wheel tilt
• Protective cage for operator
• Calibrated load gauge

CABLE BRAKE
MODEL NO. CABLEBRAKE

DESCRIPTION
www.specialisedforce.com.au
Control descent when running cables in
multi-story buildings.
The Cable Brake is used in conjunction with a
cable drum brake, when running cables between
floors in multi-level buildings.
The Unique design allows the operator to
control, dampen and hold the weight of the
cable via a Pawl and ratchet system, built into
the lever handle. DETAIL
FEATURES
50mm² CU/70mm² AL to
• Adjustable Rear and front Roller assembly to Cable Capacity 400mm² CU/500MM² AL
allow for different cable diameters (mm) (Also some 630mm², depending
• 5mm Perspex shield for operator protection on OD)

• Dimensions (mm) 800w x 675d x 410h
• High leverage adjustable handle, with pawl and (Not including handle)
ratchet assembly for ease of operation Handle (mm) 1,250mm long
• 100mm Bell-Mouth Feeding Sheave (IFS-100) to Total Weight (kg) Approximately 80
protect cable from sharp edges
• 4 x 20mm holes in the base plate for anchoring 280 max (based on test of Nexons/
(Must use 16mm bolts to anchor to ground) WLL (kg) Olex 2013 108-5 X-90 ELEC CABLE
0.6-1kV, with applied pressure of
60kg on the handle
