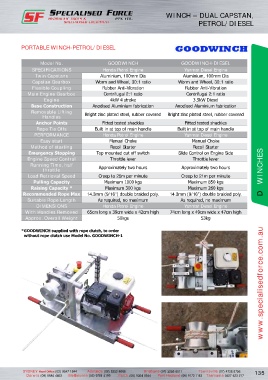

Page 145 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

WINCH – DUAL CAPSTAN,
PETROL/DIESEL

PORTABLE WINCH-PETROL/DIESEL

Model No. GOODWINCH GOODWINCH-DIESEL
SPECIFICATIONS Honda Petrol Engine Yanmar Diesel Engine
Twin Capstans Aluminium, 100mm Dia Aluminium, 100mm Dia
Capstan Gearbox Worm and Wheel, 30:1 ratio Worm and Wheel, 30:1 ratio
Flexible Coupling Rubber Anti-Vibration Rubber Anti-Vibration
Main Engine Gearbox Centrifugal 2:1 ratio Centrifugal 2:1 ratio
Engine 4kW 4 stroke 3.5kW Diesel
Base Construction Anodised Aluminium fabrication Anodised Aluminium fabrication
Removable Lifting Bright zinc plated steel, rubber covered Bright zinc plated steel, rubber covered
Handles
Anchor Points Fitted tested shackles Fitted tested shackles
Rope Tie Offs Built in at top of main handle Built in at top of main handle
PERFORMANCE Honda Petrol Engine Yanmar Diesel Engine
Easy start Manual Choke Manual Choke
Method of starting Recoil Starter Recoil Starter
Emergency Stopping Top mounted cut off switch Slide Control on Engine Side
Engine Speed Control Throttle lever Throttle lever
Running Time, half
throttle Approximately two hours Approximately two hours D WINCHES
Load Retrieval Speed Creep to 25m per minute Creep to 21m per minute
Pulling Capacity Maximum 1000 kgs Maximum 850 kgs
Raising Capacity * Maximum 300 kgs Maximum 260 kgs
Recommended Rope Max 14.3mm (9/16”) double braided poly. 14.3mm (9/16”) double braided poly.
Suitable Rope Length As required, no maximum As required, no maximum
DIMENSIONS Honda Petrol Engine Yanmar Diesel Engine
With Handles Removed 65cm long x 39cm wide x 42cm high 74cm long x 49cm wide x 47cm high
Approx. Overall Weight 50kgs 53kg

* GOODWINCH supplied with rope clutch, to order
without rope clutch use Model No. GOODWINCH-1 www.specialisedforce.com.au
