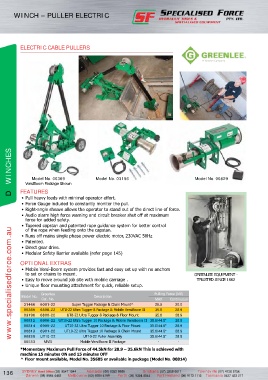

Page 146 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

WINCH – PULLER ELECTRIC

ELECTRIC CABLE PULLERS

D WINCHES VersiBoom Package Shown Model No. 03196 Model No. 00829

Model No. 00369

FEATURES
• Pull heavy loads with minimal operator effort.
• Force Gauge included to constantly monitor the pull.
• Right-angle sheave allows the operator to stand out of the direct line of force.
• Audio alarm high force warning and circuit breaker shut off at maximum
force for added safety.
• Tapered capstan and patented rope guidance system for better control
www.specialisedforce.com.au
of the rope when feeding onto the capstan.
• Runs off mains single phase power electric motor, 230VAC 50Hz
• Patented.
• Direct gear drive.
• Modular Safety Barrier available (refer page 145)

OPTIONAL EXTRAS
• Mobile Versi-Boom system provides fast and easy set up with no anchors
to set or chains to mount. GREENLEE EQUIPMENT -
• Easy to move around job site with mobile carriage . TRUSTED SINCE 1862
• Unique floor mounting attachment for quick, reliable setup.

Greenlee Pulling Force (kN)
Model No. Description
Cat. No. MAX Continuous
31466 6001-22 Super Tugger Package & Chain Mount^ 28.9 20.0
00369 6806-22 UT8-22 Ultra Tugger 8 Package & Mobile VersiBoom II 35.8 28.9
03196 6800-22 UT8-22 Ultra Tugger 8 Package & Floor Mount 35.8 28.9
00812 6906-22 UT10-22 Ultra Tugger 10 Package & Mobile VersiBoom II 35.6/44.5* 28.9
00814 6900-22 UT10-22 Ultra Tugger 10 Package & Floor Mount 35.6/44.5* 28.9
00813 6901-22 UT10-22 Ultra Tugger 10 Package & Chain Mount 35.6/44.5* 28.9
00829 UT10-22 UT10-22 Puller Assembly 35.6/44.5* 28.9
00553 MVB Mobile VersiBoom II Package - -
*Momentary Maximum Pull Force of 44.5kN for 28.9 – 35.6kN This is achieved with
machine 15 minutes ON and 15 minutes OFF
^ Floor mount available, Model No. 35605 or available in package (Model No. 00814)
