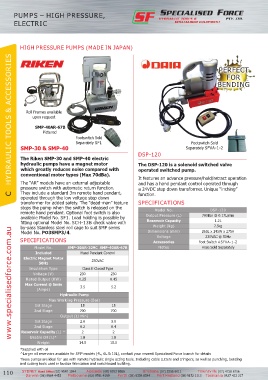

Page 120 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

PUMPS – HIGH PRESSURE,
ELECTRIC

HIGH PRESSURE PUMPS (MADE IN JAPAN)

C HYDRAULIC TOOLS & ACCESSORIES

PERFECT
FOR
BENDING

Roll Frames available
upon request
SMP-40AR-67B
Pictured
Footswitch Sold
Separately SF1 Footswitch Sold
SMP-30 & SMP-40 Separately SFVA-1-2
DSP-120
The Riken SMP-30 and SMP-40 electric
hydraulic pumps have a magnet motor The DSP-120 is a solenoid switched valve
which greatly reduces noise compared with operated switched pump.
conventional motor types (Max 70dBa).
It features an advance pressure/hold/retract operation
The “AR” models have an external adjustable and has a hand pendant control operated through
pressure switch with automatic return function. a 24VDC step down transformer. Unique “inching”
They include a standard 3m remote hand pendant, function.
operated through the low voltage step down
transformer for added safety. The “dead-man” feature SPECIFICATIONS
stops the pump when the switch is released on the Model No. DSP-120
remote hand pendant. Optional foot switch is also Output Pressure (L)
available Model No. SF1. Load holding is possible by 700Bar @ 0.17L/min
fitting optional Model No. SCH-13B check valve with Reservoir Capacity 1.2L
by-pass Stainless steel roll cage to suit SMP series Weight (kg) 7.5kg
www.specialisedforce.com.au
Model No. PO3SMP3/4. Dimensions (mm) 265L x 145W x 275H
Voltage
230VAC @ 50Hz
SPECIFICATIONS Accessories Foot Switch #SFVA-1-2
Model No. SMP-30AR-329C SMP-40AR-67B Notes Hose Sold Separately
Included Hand Pendant Control
Electric Magnet Motor
50Hz 230VAC
Insulation Type Class E Closed Type
Voltage (V) 230 230
Rated Output (KW) 0.25 0.45
Max Current @ 5min 3.5 5.2
(Amps)
Hydraulic Pump
Max Working Pressure (Bar)
1st Stage 15 15
2nd Stage 700 700
Output (L/min)
1st Stage 2.0 3.0
2nd Stage 0.2 0.4
Reservoir Capacity (L) ^ 2 2
Usable Oil (L)* 1.8 1.8
Weight 14.5 15.0
*Supplied with oil
^Larger oil reservoirs available for SMP models (4L, 6L & 10L), contact your nearest Specialised Force branch for details
These pumps are ideal for use with remote hydraulic single acting tools. Including cable cutters and crimpers, as well as punching, bending
and cutting tools used in busbar fabrication and switchboard building.
