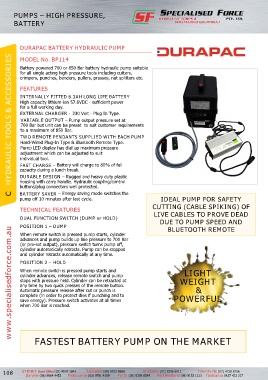

Page 118 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

PUMPS – HIGH PRESSURE,
BATTERY

DURAPAC BATTERY HYDRAULIC PUMP

C HYDRAULIC TOOLS & ACCESSORIES
MODEL No. BP114
Battery powered 700 or 850 Bar battery hydraulic pump suitable
for all single acting high pressure tools including cutters,
crimpers, punches, benders, pullers, presses, nut splitters etc.

FEATURES
INTERNALLY FITTED 6.3AH LONG LIFE BATTERY
High capacity lithium-ion 57.6VDC - sufficient power
for a full working day.
EXTERNAL CHARGER - 230 Volt - Plug In Type.
VARIABLE OUTPUT – Pump output pressure set at
700 Bar but unit can be preset to suit customer requirements
to a maximum of 850 Bar.
TWO REMOTE PENDANTS SUPPLIED WITH EACH PUMP
Hard-Wired Plug-In Type & Bluetooth Remote Type.
Pump LED display has dial up maximum pressure
adjustment which can be adjusted to suit
individual tool.
FAST CHARGE – Battery will charge to 80% of full
capacity during a lunch break.
DURABLE DESIGN – Rugged and heavy duty plastic
housing with carry handle. Hydraulic coupling/control
buttons/plug connectors well protected.
BATTERY SAVER – Energy saving mode switches the
pump off 10 minutes after last cycle. IDEAL PUMP FOR SAFETY
CUTTING (CABLE SPIKING) OF
TECHNICAL FEATURES

DUAL FUNCTION SWITCH (DUMP or HOLD) LIVE CABLES TO PROVE DEAD
DUE TO PUMP SPEED AND
POSITION 1 – DUMP BLUETOOTH REMOTE
www.specialisedforce.com.au
When remote switch is pressed pump starts, cylinder
advances and pump builds up line pressure to 700 Bar
(or pre-set output), pressure switch turns pump off,
cylinder automatically retracts. Pump can be stopped
and cylinder retracts automatically at any time.
POSITION 2 – HOLD
When remote switch is pressed pump starts and LIGHT
cylinder advances, release remote switch and pump
stops with pressure held. Cylinder can be retracted at WEIGHT
any time by two quick presses of the remote button.
Automatic pressure release after cut or punch is &
complete (in order to protect dies if punching and to
save energy). Pressure switch activates at all times POWERFUL
when 700 Bar is reached.

FASTEST BATTERY PUMP ON THE MARKET
