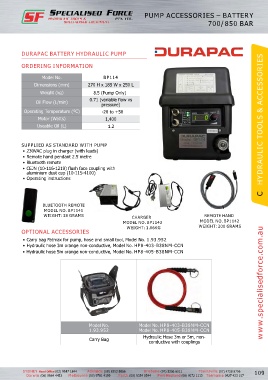

Page 119 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

PUMP ACCESSORIES – BATTERY
700/850 BAR

DURAPAC BATTERY HYDRAULIC PUMP

ORDERING INFORMATION

Model No. BP114
Dimensions (mm) 270 H x 185 W x 250 L
Weight (kg) 8.5 (Pump Only)

Oil Flow (L/min) pressure)
Operating Temperature (ºC) -20 to +50
Motor (Watts) 1,400
Useable Oil (L) 1.2 C HYDRAULIC TOOLS & ACCESSORIES

SUPPLIED AS STANDARD WITH PUMP
• 230VAC plug in charger (with leads)
• Remote hand pendant 2.5 metre
• Bluetooth remote
• CEJN (10-116-1219) flush face coupling with
aluminium dust cap (10-115-4100)
• Operating instructions

BLUETOOTH REMOTE
MODEL NO. BP1141
WEIGHT: 38 GRAMS CHARGER REMOTE HAND
MODEL NO. BP1143 MODEL NO. BP1142
WEIGHT: 1.06KG WEIGHT: 200 GRAMS

OPTIONAL ACCESSORIES
• Carry bag Fatmax for pump, hose and small tool, Model No. 1.93.952
• Hydraulic hose 3m orange non-conductive, Model No. HP8-403-B38NM-CCN
• Hydraulic hose 5m orange non-conductive, Model No. HP8-405-B38NM-CCN www.specialisedforce.com.au

Model No. Model No. HP8-403-B38NM-CCN
1.93.952 Model No. HP8-405-B38NM-CCN
Carry Bag Hydraulic Hose 3m or 5m, non-
conductive with couplings
