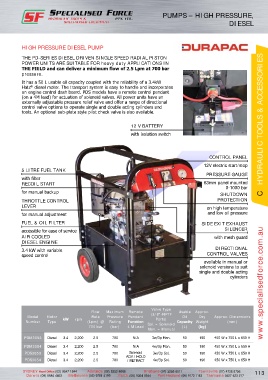

Page 123 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

PUMPS – HIGH PRESSURE,
DIESEL

HIGH PRESSURE DIESEL PUMP

THE PD-SERIES DIESEL DRIVEN SINGLE SPEED RADIAL PISTON
POWER UNITS ARE SUITABLE FOR heavy duty APPLICATIONS IN
THE FIELD and can deliver a minimum flow of 2.5 Lpm at 700 bar
pressure.
It has a 50 L usable oil capacity coupled with the reliability of a 3.4kW
Hatz diesel motor. The transport system is easy to handle and incorporates
®
an engine control dash board. PDS models have a remote control pendant
(on a 4M lead) for actuation of solenoid valves. All power units have an
externally adjustable pressure relief valve and offer a range of directional
control valve options to operate single and double acting cylinders and
tools. An optional sub-plate style pilot check valve is also available.

12 V BATTERY C HYDRAULIC TOOLS & ACCESSORIES
with isolation switch

CONTROL PANEL
12V electric start/stop
5 LITRE FUEL TANK
PRESSURE GAUGE
with filter
RECOIL START 63mm panel mounted
0-1000 bar
for manual backup SHUTDOWN

THROTTLE CONTROL PROTECTION
LEVER on high temperature
for manual adjustment and low oil pressure

FUEL & OIL FILTER SIDE EXIT EXHAUST
accessible for ease of service SILENCER
AIR COOLED with mesh guard
DIESEL ENGINE
3.4 kW with variable DIRECTIONAL
speed control CONTROL VALVES
available in manual or
solenoid versions to suit
single and double acting
cylinders www.specialisedforce.com.au

Valve Type
Flow Maximum Remote Usable Approx.
Model Motor Rate Pressure Pendant (3/8"-NPTF Oil Dry Approx. Dimensions
Number Type kW rpm (Lpm) @ Rating Function Ports) Capacity Weight (mm)
700 bar (bar) 4 M Lead Sol. = Solenoid (L) (kg)
Man. = Manual
PDM3053 Diesel 3.4 2,200 2.5 700 N/A 3w/3p Man. 50 190 450 W x 750 L x 650 H
PDM3054 Diesel 3.4 2,200 2.5 700 N/A 4w/3p Man. 50 190 450 W x 750 L x 650 H
PDS3053 Diesel 3.4 2,200 2.5 700 Solenoid 3w/3p Sol. 50 190 450 W x 750 L x 650 H
ADV / HOLD
PDS3054 Diesel 3.4 2,200 2.5 700 / RETRACT 4w/3p Sol. 50 190 450 W x 750 L x 650 H
