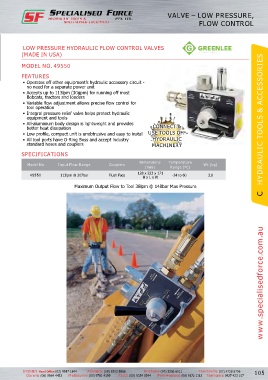

Page 115 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

V A L V L – E O W P R E S S U R , E
FLOW CONTROL

LOW PRESSURE HYDRAULIC FLOW CONTROL VALVES
(MADE IN USA)

MODEL NO. 49550

FEATURES
• Operates off other equipment’s hydraulic accessory circuit -
no need for a separate power unit
• Accepts up to 113lpm (30gpm) for running off most
Bobcats, tractors and loaders
•
tool operation
• Integral pressure relief valve helps protect hydraulic
equipment and tools
• All-aluminium body design is lightweight and provides C HYDRAULIC TOOLS & ACCESSORIES
better heat dissipation CONNECT &
• le, compact unit is unobtrusive and easy to install USE TOOLS OFF
• All tool ports have O-Ring Boss and accept industry HYDRAULIC
standard hoses and couplers MACHINERY

SPECIFICATIONS
Dimensions Temperature
Model No Input Flow Range Couplers Wt (kg)
(mm) Range (ºC)
49550 113lpm @ 207bar Flush Face 128 x 223 x 171 -34 to 60 3.8
H x L x W
Maximum Output Flow to Tool 38lpm @ 148bar Max Pressure
