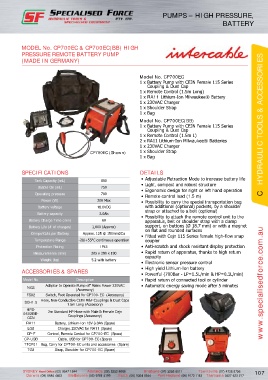

Page 117 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

PUMPS – HIGH PRESSURE,
BATTERY

MODEL No. CP700EC & CP700EC(BB) HIGH
PRESSURE REMOTE BATTERY PUMP
(MADE IN GERMANY)

Model No. CP700EC
1 x Battery Pump with CEJN Female 115 Series
Coupling & Dust Cap
1 x Remote Control (1.5m Long)
1 x RA11 Lithium-Ion Milwaukee® Battery
1 x 230VAC Charger
1 x Shoulder Strap
1 x Bag
Model No. CP700EC(BB)
1 x Battery Pump with CEJN Female 115 Series C HYDRAULIC TOOLS & ACCESSORIES
Coupling & Dust Cap
1 x Remote Control (1.5m L)
2 x RA11 Lithium-Ion Milwaukee® Batteries
1 x 230VAC Charger
CP700EC (Shown) 1 x Shoulder Strap
1 x Bag

SPECIFICATIONS DETAILS
• Adjustable Retraction Mode to increase battery life
Tank Capacity (mL) 800
Usable Oil (mL) 750 • Light, compact and robust structure
• Ergonomic design for right or left hand operation
Operating pressure 700
• Remote control lead (1.5 m)
Power (W) 200 Max • Possibility to carry the special transportation bag
Battery voltage 18.0VDC with additional (optional) pockets, by a shoulder
Battery capacity 3.0Ah strap or attached to a belt (optional)
• Possibility to attach the remote control unit to the
Battery Charge Time (min) 60 apparatus, belt or shoulder strap with a clamp
Battery Life (# of charges) 1,000 (Approx) support, on buttons (Ø 18.7 mm) or with a magnet
on flat and rounded surfaces
Crimps/Cuts per Battery Approx. 125 @ 150mm2Cu • Fitted with Cejn 115 Series female high-flow snap
Temperature Range -20/+55°C continuous operation coupler
Protection Rating IP43 • Anti-scratch and shock resistant display protection
Measurements (mm) 205 x 290 x 190 • Rapid return of apparatus, thanks to high return
capacity
Weight (kg) 5.2 with battery
• Electronic sensor pressure control
ACCESSORIES & SPARES • High yield Lithium-Ion battery
• Powerful (700Bar - LP=1.5L/min & HP=0.1L/min)
Model No. Description • Rapid return of connected tool or cylinder
NG3 Adaptor to Operate Pump off Mains Power 230VAC • Automatic energy saving mode after 5 minutes www.specialisedforce.com.au
(Accessory)
FS02 Switch, Foot Operated for CP700-EC (Accessory)
SCH1.5 Hose, Non-Conductive CEJN M&F Couplings & Dust Caps
1.5m Long (Accessory)
HPS-
0602BB- 2m Standard HP Hose with Male & Female Cejn
CCN Couplings (Accessory)
RA11 Battery, Lithium-Ion 18V 3.0Ah (Spare)
LG8 Charger, 230VAC for RA11 (Spare)
CP-F Control, Remote Corded for CP700-EC (Spare)
CP-USB Cable, USB for CP700-EC (Spare)
TTCP01 Bag, Carry for CP700-EC units and accessories (Spare)
TG3 Strap, Shoulder for CP700-EC (Spare)
