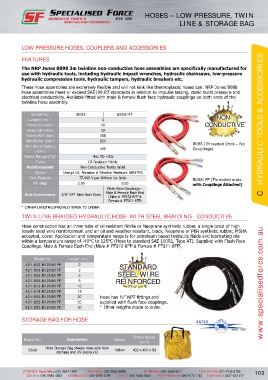

Page 113 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

HOSES – LOW PRESSURE, TWIN
LINE & STORAGE BAG

LOW PRESSURE HOSES, COUPLERS AND ACCESSORIES

FEATURES

The NRP Jones B098 3m twinline non-conductive hose assemblies are specifically manufactured for
use with hydraulic tools, including hydraulic impact wrenches, hydraulic chainsaws, low-pressure
hydraulic compression tools, hydraulic tampers, hydraulic breakers etc.
These hose assemblies are extremely flexible and will not kink like thermoplastic hoses can. NRP Jones B098
hose assemblies meet or exceed SAE100-R7 standards in relation to impulse testing, static burst pressure and
electrical conductivity. Available fitted with male & female flush face hydraulic couplings on both ends of the
twinline hose assembly.

Model No. B098 B098/FF
Length (m) * 3 NON-
Hose ID (mm) 10 CONDUCTIVE C HYDRAULIC TOOLS & ACCESSORIES
Hose OD (mm) 19
Rated WP (Bar) 155
Min Burst (Bar) 620
Min Bend Radius B098 (Threaded Ends – No
(mm) 125 Couplings)
Temp Range (ºC) -40c TO +93c
Tube Oil Resistant Nitrile
Reinforcement Non-Conductive Textile Braid
Cover Orange Oil, Abrasion & Weather Resistant NBR/PVC
Test Results 75,000 V per 300mm for 3min B098/FF (Threaded ends
Wt (kg) 2.05 2.65 with Couplings Attached)
Flush Face Couplings –
End Connections 3/8” NPT Male Both Ends Male & Female Each End
(Male # FF372-6FP &
Female # FF371-6FP)
* OTHER LENGTHS SPECIALLY MADE TO ORDER
TWIN LINE BRAIDED HYDRAULIC HOSE WITH STEEL BRAIDING - CONDUCTIVE

Hose construction has an inner tube of oil resistant Nitrile or Neoprene synthetic rubber, a single braid of high
tensile steel wire reinforcement and an oil and weather resistant, black, Neoprene or PKR synthetic rubber, MSHA
accepted, cover. Application and temperature range is for petroleum based hydraulic fluids and lubricating oils
within a temperature range of -40°C to 125°C (Hose to standard SAE 100R1, Type AT). Supplied with Flush Face
Couplings, Male & Female Each End (Male # FF372-6FP & Female # FF371-6FP).

Model No. Length (m)*
421-802-B12NM/FF 2 STANDARD
421-803-B12NM/FF 3
421-805-B12NM/FF 5 STEEL WIRE
421-806-B12NM/FF 6 REINFORCED
421-810-B12NM/FF 10 www.specialisedforce.com.au
421-815-B12NM/FF 15
421-820-B12NM/FF 20 Hose has ½” NPT fittings and
421-825-B12NM/FF 25 supplied with flush face couplings.
421-830-B12NM/FF 30 * Other lengths made to order.

STORAGE BAG FOR HOSE

Dimensions
Model No. Description Colour
(mm)
2630 Hose Storage Bag (Keeps hose safe from Yellow 432 x 470 x 89
damage and UV exposure)
