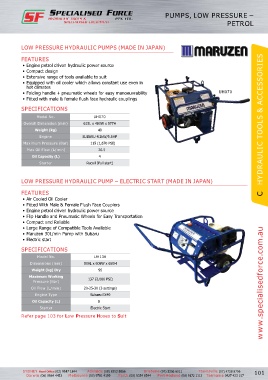

Page 111 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

PUMPS, LOW PRESSURE –
PETROL

LOW PRESSURE HYDRAULIC PUMPS (MADE IN JAPAN)

FEATURES
• Engine petrol driven hydraulic power source
• Compact design
• Extensive range of tools available to suit
• Equipped with oil cooler which allows constant use even in
hot climates
• Folding handle + pneumatic wheels for easy manoeuvrability UH070
• Fitted with male & female flush face hydraulic couplings

SPECIFICATIONS

Model No. UH070
Overall Dimension (mm) 615L x 480W x 577H C HYDRAULIC TOOLS & ACCESSORIES
Weight (kg) 40
Engine SUBARU 4.2kW/5.6HP
Maximum Pressure (Bar) 115 (1,670 PSI)
Max Oil Flow (L/min) 20.5
Oil Capacity (L) 4
Starter Recoil (Pull start)

LOW PRESSURE HYDRAULIC PUMP – ELECTRIC START (MADE IN JAPAN)

FEATURES
• Air Cooled Oil Cooler
• Fitted With Male & Female Flush Face Couplers
• Engine petrol driven hydraulic power source
• Flip Handle and Pneumatic Wheels for Easy Transportation
• Compact and Reliable
• Large Range of Compatible Tools Available
• Maruzen 30L/min Pump with Subaru
• Electric start
SPECIFICATIONS
Model No. UH130
Dimensions (mm) 800L x 608W x 650H
Weight (kg) Dry 95
Maximum Working
Pressure (Bar) 137 (2,000 PSI) www.specialisedforce.com.au
Oil Flow (L/min) 20-25-30 (3 settings)
Engine Type Subaru EX40
Oil Capacity (L) 8
Starter Electric Start
Refer page 103 for Low Pressure Hoses to Suit
