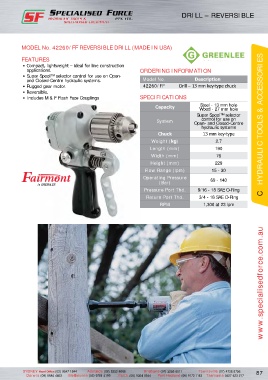

Page 97 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

DRILL – REVERSIBLE

MODEL No. 42260/FF REVERSIBLE DRILL (MADE IN USA)

FEATURES
• Compact, lightweight – ideal for line construction
applications. ORDERING INFORMATION
• Super Spool™ selector control for use on Open-
and Closed- Centre hydraulic systems. Model No. Description
• Rugged gear motor. 42260/FF Drill – 13 mm key-type chuck
• Reversible.
• Includes M & F Flash Face Couplings SPECIFICATIONS
Steel - 13 mm hole
Capacity Wood - 27 mm hole
Super Spool™ selector
control for use on
System Open- and Closed-Centre
hydraulic systems C HYDRAULIC TOOLS & ACCESSORIES
Chuck 13 mm key-type
Weight (kg) 2.7
Length (mm) 190
Width (mm) 76
Height (mm) 229
Flow Range (lpm) 15 - 30
Operating Pressure
(Bar) 69 - 140
Is GREENLEE
Pressure Port Thd. 9/16 - 18 SAE O-Ring
Return Port Thd. 3/4 - 16 SAE O-Ring
RPM 1,300 at 23 lpm www.specialisedforce.com.au
