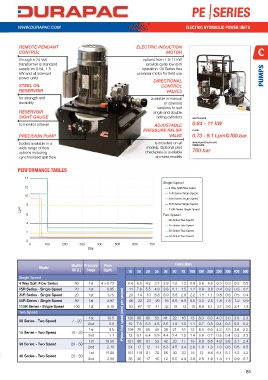

PE |SERIES




         WWW.DURAPAC.COM                                                           ELECTRIC HYDRAULIC POWER UNITS



          REMOTE PENDANT                                      ELECTRIC INDUCTION
          CONTROL                                                          MOTOR                                    C
          through a 24 Volt                                     options from 1.5-11 kW
          transformer is standard                                 provide quite low rpm
          supply on 0.84, 1.5                                   operation. 08 Series has
          kW and all solenoid                                 universal motor for field use
          power units                                                                                                 PUMPS
                                                                     DIRECTIONAL
          STEEL OIL                                                      CONTROL
          RESERvOIR                                                        vALvES
          for strength and                                          available in manual
          durability                                                      or solenoid
                                                                       versions to suit
          RESERvOIR                                                  single and double
          SIGhT GAUGE                                                  acting cylinders  MOTOR SIZE
          to monitor oil level                                        ADJUSTABLE      0.84 - 11 kW
                                                                 PRESSURE RELIEF      FLOW
          PRECISION PUMP                                                    vALvE     0.73 - 8.1 Lpm@700 bar
          bodies available in a                                       is included on all   MAXIMUM OPERATING
                                                                                      PRESSURE
          wide range of flow                                      models. Optional pilot
          options including                                       checkplate is available   700 bar
          synchronised split flow                                     on most models

         PERFORMANCE TABLES

            14
                                                                         Single Speed
            12                                                              4 Way Split Flow Series
                                                                            15R-Series Single Speed
            10
                                                                            30R-Series Single Speed
             8                                                              55R-Series Single Speed
          Lpm                                                               110R-Series Single Speed
             6                                                           Two Speed
                                                                            08-Series Two Speed
             4
                                                                            15-Series Two Speed
             2                                                              30-Series Two Speed
                                                                            40-Series Two Speed
             0
              0      100     200    300     400     500     600    700
                                        Bar



                                 Usable  Pressure   Flow                       Force (ton)
                  Model
                                 Oil (L)  Stage  (Lpm)    10  15  20  25  30  50  75  100 150 200 250 300 400 500
         Single Speed
         4 Way Split Flow Series  50    1st   4 x 0.73    8.4  6.0  4.2  3.7  2.9  1.6  1.2  0.9  0.6  0.5  0.3  0.3  0.2  0.2
         15R Series - Single Speed  20  1st      0.95     11  7.8  5.5  4.8  3.8  2.1  1.5  1.2  0.8  0.6  0.4  0.3  0.3  0.2
         30R Series - Single Speed  20  1st      1.75     20  14  10  8.8  6.9  3.8  2.8  2.2  1.5  1.1  0.8  0.6  0.5  0.4
         55R Series - Single Speed  50  1st      3.97     46  33  23  20  16  8.6  6.5  5.0  3.3  2.5  1.8  1.5  1.2  0.9
          110R Series - Single Speed  100  1st   8.10     93  67  47  41  32  18  13  10  6.8  5.1  3.7  3.0  2.4  1.8
          Two Speed                                     Piston Rod speed (mm) per second
                                        1st      10.5     120  86  60  53  41  22  16  13  8.0  6.0  4.0  3.0  3.0  2.3
          08 Series - Two Speed  7 - 20
                                        2nd      0.9      10  7.5  5.3  4.5  3.6  1.9  1.5  1.1  0.7  0.5  0.4  0.3  0.2  0.2
                                        1st       9.5     109  78  55  48  38  21  15  12  8.0  6.0  4.3  3.5  2.8  2.2
          15 Series - Two Speed  10 - 20
                                        2nd       1.1     13  9.1  6.4  5.5  4.4  2.4  1.8  1.4  0.9  0.7  0.5  0.4  0.3  0.3
                                        1st     10.50     121  86  61  53  42  23  17  13  8.8  6.6  4.8  3.8  3.1  2.4
          30 Series - Two Speed  20 - 50
                                        2nd      2.10     24  17  12  11  8.3  4.5  3.4  2.6  1.8  1.3  1.0  0.8  0.6  0.5
                                         1st    14.00     161 115  81  70  56  30  23  18  12  8.8  6.4  5.1  4.2  3.2
          40 Series - Two Speed  20 - 50
                                        2nd      3.00     35  25  17  15  12  6.5  4.9  3.8  2.5  1.9  1.4  1.1  0.9  0.7
