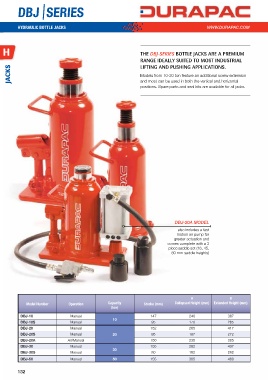

P. 132

DBJ |SERIES




         HYDRAULIC BOTTLE JACKS                                                              WWW.DURAPAC.COM




  H                                                            thE DBJ-SerIeS bottLE jacKs arE a prEmium

                                                               raNGE iDEaLLy suitED to most iNDustriaL
                                                               LiftiNG aND pushiNG appLicatioNs.
      JACKS                                                    Models from 10-20 ton feature an additional screw extension

                                                               and most can be used in both the vertical and horizontal
                                                               positions. Spare parts and seal kits are available for all jacks.




































                                                                               DBJ-20A MODEL
                                                                                also includes a fast
                                                                                motion air pump for
                                                                              greater actuation and
                                                                           comes complete with a 3
                                                                            piece saddle set (16, 45,
                                                                             80 mm saddle heights)











                                                                                      A                B                                C                            Screw Extension &
             Model Number       Operation        Capacity        Stroke (mm)   Collapsed Height (mm)  Extended Height (mm)        Piston Rod Diameter   Base Dimensions   Saddle Set Auxiliary   Air Pressure Range   Weight    Model Number
                                                                                                                                                                                              2
                                                  (ton)                                                                                (mm)           L x W (mm)       Height (mm)       (kgf/cm )          (kg)
           DBJ-10               Manual                              147              240              387                               42            105 x 166           85                -                8.2       DBJ-10
                                                   10
           DBJ-10S              Manual                              95               170              265                               42            105 x 166           55                -                6.4       DBJ-10S
           DBJ-20               Manual                              152              265              417                               55            128 x 181           85                -                13.3      DBJ-20
           DBJ-20S              Manual             20               85               187              272                               55            128 x 181           55                -                10.0      DBJ-20S
           DBJ-20A             Air/Manual                           150              235              385                               50            128 x 238        16, 45, 80          8-12              14.5      DBJ-20A
           DBJ-30               Manual                              155              282              437                               62            142 x 197            -                -                19.6      DBJ-30
                                                   30
           DBJ-30S              Manual                              80               182              262                               62            142 x 197            -                -                13.8      DBJ-30S
           DBJ-50               Manual             50               155              305              460                               85            200 x 260            -                -                42.3      DBJ-50

         132
