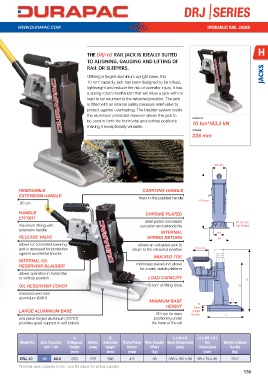

DRJ |SERIES




         WWW.DURAPAC.COM                                                                     HYDRAULIC RAIL JACKS




                                                                                                                    H
                                        thE DrJ-10 raiL jacK is iDEaLLy suitED
                                        to aLiGNiNG, GauGiNG aND LiftiNG of
                                        raiL or sLEEpErs.
                                        Utilising a forged aluminium upright base, this                               JACKS
                                        10 ton* capacity jack has been designed to be robust,
                                        lightweight and reduce the risk of operator injury. It has
                                        a spring return mechanism that will allow a jack with no
                                        load to be returned to the retracted position. The jack
                                        is fitted with an internal safety pressure relief valve to
                                        protect against overloading. The bladder system inside
                                        the aluminium protected reservoir allows the jack to
                                        be used in both the horizontal and vertical positions   CAPACITY
                                        making it exceptionally versatile.            10 ton*/83.3 kN
                                                                                      STROkE
                                                                                      225 mm






                                                                                                104 mm





          REMOvABLE                                             CARRYING hANDLE
          EXTENSION hANDLE                                     fixed in-line padded handle
           80 cm                                                                         416 mm
          hANDLE                                                  ChROME PLATED
          EFFORT
                                                                  steel piston rod resists                H1 30 mm
          maximum 36 kg with                                   corrosion and extends life                 Toe Height
          extension handle
                                                                         INTERNAL                W1
          RELEASE vALvE                                           SPRING RETURN                   W
          allows for controlled lowering                      allows an unloaded jack to
          and is recessed for protection                    return to the retracted position  120 mm
          against accidental knocks
                                                                     INDEXED TOE
            INTERNAL OIL
          RESERvOIR BLADDER                                   minimises swivel and allows
                                                               for a safe, stable platform
          allows operation in horizontal
          or vertical position                                     LOAD CAPACITY                              B
          OIL RESERvOIR COvER                                     10 ton* of lifting force                 A

          manufactured from
          aluminium (6061)
                                                                   MINIMUM BASE                         L1
                                                                                         H
                                                                           hEIGhT      Base
          LARGE ALUMINIUM BASE                                                        Height
                                                                      50 mm for easy   50 mm         L
          one piece forged aluminium (7075T)                         positioning under
          provides great support in soft ballast                    the base of the rail


                                  A               B                           L x W x H  L1 x W1 x H1
          Model No.  Jack Capacity   Collapsed   Stroke  Extended   Travel/Pump  Max. Handle  Base Dimensions  Toe   Weight without
                     ton* / kN  Height   (mm)   Height   Stroke     Effort     (mm)      Dimensions    Handle
                                (mm)            (mm)      (mm)      (kg)                   (mm)         (kg)
           DRJ-10   10   83.3    373     225     598       4.5       36     280 x 152 x 50  66 x 79 x 30  20.2
         * Nominal Jack Capacity in ton - see kN values for actual capacity
