HP |SERIES

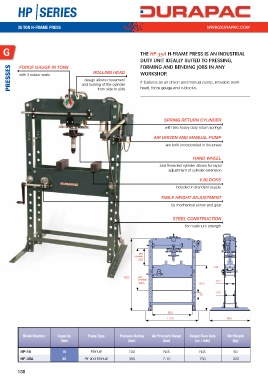

         35 TON H-FRAME PRESS                                                                WWW.DURAPAC.COM




  G                                                            thE Hp-35a h-framE prEss is aN iNDustriaL

                                                               Duty uNit iDEaLLy suitED to prEssiNG,
                                                               formiNG aND bENDiNG jobs iN aNy
      PRESSES  with 3 colour scale   and locking of the cylinder   worKshop.
          FORCE GAUGE IN TONS
                                          ROLLING hEAD
                                      design allows movement
                                                               It features an air driven and manual pump, movable work
                                                               head, force gauge and v-blocks.
                                            from side to side





                                                                          SPRING RETURN CYLINDER

                                                                          with two heavy duty return springs
                                                                     AIR DRIvEN AND MANUAL PUMP

                                                                           are both incorporated in the press

                                                                                       hAND WhEEL
                                                                        and threaded cylinder allows for rapid
                                                                            adjustment of cylinder extension

                                                                                          v BLOCkS
                                                                               included in standard supply

                                                                         TABLE hEIGhT ADJUSTMENT
                                                                             by mechanical screw and gear


                                                                              STEEL CONSTRUCTION
                                                                                   for maximum strength






                                                               MIN.
                                                             OPENING
                                                              335
                                                                                                192

                                                        1695  MAX.
                                                              OPENING
                                                              1085                        970    222

                                                                                          90     275



                                                                            850
                                                                           1130                       865


           Model Number    Capacity     Pump Type     Pressure Rating   Air Pressure Range   Output Flow Rate    Net Weight
                            (ton)                         (bar)          (bar)          (cc / min)      (kg)

           HP-10             10          Manual           700             N/A             N/A            53
           HP-35A            35        Air and Manual     360            7-10             750            222
