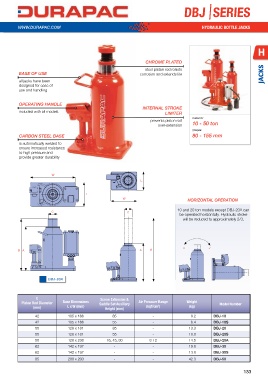

Page 133 - Durapac_2016

DBJ |SERIES

WWW.DURAPAC.COM HYDRAULIC BOTTLE JACKS

H

ChROME PLATED

steel piston rod resists
EASE OF USE corrosion and extends life JACKS
all jacks have been
designed for ease of
use and handling

OPERATING hANDLE
INTERNAL STROkE
included with all models LIMITER
CAPACITY
prevents piston rod
over-extension 10 - 50 ton
STROkE
CARBON STEEL BASE 80 - 155 mm
is automatically welded to
ensure increased resistance
to high pressure and
provide greater durability

W
L

L
W hORIZONTAL OPERATION

10 and 20 ton models except DBJ-20A can
C C
be operated horizontally. Hydraulic stroke
will be reduced to approximately 2/3.

B A A B  

DBJ-20A

A B C Screw Extension &
Model Number Operation Capacity Stroke (mm) Collapsed Height (mm) Extended Height (mm) Piston Rod Diameter Base Dimensions Saddle Set Auxiliary Air Pressure Range Weight Model Number
2
(ton) (mm) L x W (mm) Height (mm) (kgf/cm ) (kg)
DBJ-10 Manual 147 240 387 42 105 x 166 85 - 8.2 DBJ-10
10
DBJ-10S Manual 95 170 265 42 105 x 166 55 - 6.4 DBJ-10S
DBJ-20 Manual 152 265 417 55 128 x 181 85 - 13.3 DBJ-20
DBJ-20S Manual 20 85 187 272 55 128 x 181 55 - 10.0 DBJ-20S
DBJ-20A Air/Manual 150 235 385 50 128 x 238 16, 45, 80 8-12 14.5 DBJ-20A
DBJ-30 Manual 155 282 437 62 142 x 197 - - 19.6 DBJ-30
30
DBJ-30S Manual 80 182 262 62 142 x 197 - - 13.8 DBJ-30S
DBJ-50 Manual 50 155 305 460 85 200 x 260 - - 42.3 DBJ-50
