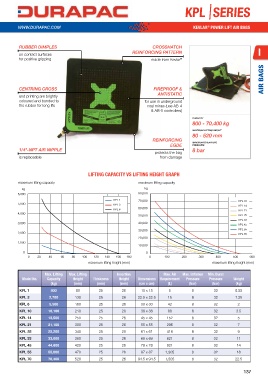

KPL |SERIES




         WWW.DURAPAC.COM                                                               KEVLAR  POWER LIFT AIR BAGS
                                                                                             ®


          RUBBER DIMPLES                                             CROSShATCh
                                                            REINFORCING PATTERN                                     i
          on contact surfaces
          for positive gripping                                     made from Kevlar ®
                                                                                                                      AIR BAGS




          CENTRING CROSS                                             FIREPROOF &
                                                                       ANTISTATIC
          and printing are brightly
          coloured and bonded to                                 for use in underground
          the rubber for long life                                coal mines (use AB-4
                                                                    & AB-5 controllers)
                                                                                      CAPACITY
                                                                                      800 - 70,400 kg

                                                                                      MAXIMUM LIFTING hEIGhT
                                                                                      80 - 520 mm
                                                                     REINFORCING
                                                                             EGDE     MAXIMUM OPERATING
                                                                                      PRESSURE
          1/4"-NPT AIR NIPPLE                                                         8 bar
                                                                      protects the bag
          is replaceable                                                from damage

                                        LIFTING CAPACITY VS LIFTING HEIGHT GRAPH

         maximum lifting capacity                             maximum lifting capacity
           kg                                                    kg
         6,000                                                80,000
                                                   KPL 1      70,000                                       KPL 10
         5,000                                     KPL 3                                                   KPL 14
                                                   KPL 6      60,000                                       KPL 21
         4,000
                                                              50,000                                       KPL 25
                                                                                                           KPL 33
         3,000                                                40,000                                       KPL 45
                                                              30,000                                       KPL 55
         2,000                                                                                             KPL 70
                                                              20,000
         1,000
                                                              10,000
           0                                                      0
             0    20   40   60   80  100   120  140  160  180      0      100     200    300     400     500    600
                                        maximum lifting height (mm)                            maximum lifting height (mm)

                     Max. Lifting   Max. Lifting     Insertion            Max. Air   Max. Inflation   Min. Burst
           Model No.  Capacity   Height   Thickness   Height  Dimensions  Requirement  Pressure  Pressure  Weight
                        (kg)      (mm)      (mm)      (mm)     (cm x cm)    (L)      (bar)     (bar)      (kg)
          KPL 1         800        80        25        26       15 x 15     5         8         32       0.55
          KPL 3        2,700      130        25        26     22.5 x 22.5   15        8         32       1.25
          KPL 6        5,500      160        25        26       30 x 30     42        8         32         2
          KPL 10      10,100      210        25        26       38 x 38     86        8         32        3.5
          KPL 14      13,500      250        25        26       45 x 45    152        8         32         5
          KPL 21      21,100      300        25        26       55 x 55    296        8         32         7
          KPL 25      25,200      340        25        26       61 x 61    416        8         32         9
          KPL 33      33,000      380        25        26       69 x 69    621        8         32        11
          KPL 45      44,600      420        25        26       78 x 78    921        8         32        14
          KPL 55      55,000      470        25        26       87 x 87   1,305       8         32        18
          KPL 70      70,400      520        25        26     94.5 x 94.5  1,505      8         32       22.5
