HP |SERIES

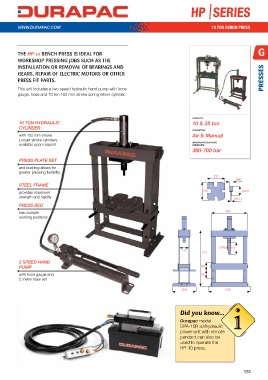

         WWW.DURAPAC.COM                                                                       10 TON BENCH PRESS




                                                                                                                    G
         thE Hp-10 bENch prEss is iDEaL for
         worKshop prEssiNG jobs such as thE
         iNstaLLatioN or rEmovaL of bEariNGs aND
         GEars, rEpair of ELEctric motors or othEr
         prEss fit parts.                                                                                             PRESSES
         This unit includes a two speed hydraulic hand pump with force
         gauge, hose and 10 ton 152 mm stroke spring return cylinder.





                                                                                      CAPACITY
          10 TON hYDRAULIC                                                            10 & 35 ton
          CYLINDER
                                                                                      OPERATION
          with 152 mm stroke.                                                         Air & Manual
          Longer stroke cylinders
          available upon request                                                      MAXIMUM OPERATING
                                                                                      PRESSURE
                                                                                      360-700 bar

          PRESS PLATE SET
          and bushing allows for
          greater pressing flexibility
                                                                                                230
                                                                                                          Ø46
          STEEL FRAME

          provides maximum                                                                 230              120.5
          strength and rigidity                                                                          Ø12.7
          PRESS BED
          has multiple                                                                               460
                                                                                                         ?
          working positions






                                                                                                  STROKE 152
                                                                                  117
                                                                                           715
          2 SPEED hAND
          PUMP                                                                            102
          with force gauge and                                                            102            !
          2 metre hose set

                                                                                  304                536




                                                                                 Did you know...         i
                                                                                 Durapac model
                                                                                 DPA-15R air/hydraulic
                                                                                 power unit with remote
                                                                                 pendant can also be
                                                                                 used to operate the
                                                                                 HP-10 press.
