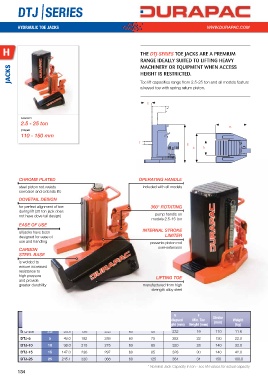

Page 134 - Durapac_2016
P. 134

DTJ |SERIES




         HYDRAULIC TOE JACKS                                                                 WWW.DURAPAC.COM




  H                                                            thE DtJ-SerIeS toE jacKs arE a prEmium

                                                               raNGE iDEaLLy suitED to LiftiNG hEavy
                                                               machiNEry or EquipmENt whEN accEss
      JACKS                                                    hEiGht is rEstrictED.

                                                               Toe lift capacities range from 2.5-25 ton and all models feature
                                                               a keyed toe with spring return piston.


                                                                  C


          CAPACITY
          2.5 - 25 ton
                                                                                                       B
          STROkE
          110 - 150 mm
                                                               F                    E
                                                                                       A   D







          ChROME PLATED                                        OPERATING hANDLE
          steel piston rod resists                              included with all models
          corrosion and extends life
          DOvETAIL DESIGN

          for perfect alignment of toe                              360° ROTATING
          during lift (25 ton jack does
          not have dove tail design)                                  pump handle on
                                                                    models 2.5-15 ton
          EASE OF USE
                                                                INTERNAL STROkE
          all jacks have been
          designed for ease of                                            LIMITER
          use and handling                                          prevents piston rod
          CARBON                                                       over-extension
          STEEL BASE
          is welded to
          ensure increased
          resistance to
          high pressure                                               LIFTING TOE
          and provide
          greater durability                                    manufactured from high
                                                                    strength alloy steel





                                      A         B          C         D         E         F
           Model No.  Jack Capacity   Jack Width   Jack Depth   Toe Length   Toe Width   Collapsed   Min. Toe   Stroke   Weight
                        ton* / kN    (mm)      (mm)      (mm)      (mm)    Height (mm)  Height (mm)  (mm)  (kg)
           DTJ-2.5    2.5    24.5    126       233        60        50        232       19       110      11.6
           DTJ-5       5     49.0    182       259        60        75        282       22       130      22.0
           DTJ-10     10     98.0    215       275        63        85        320       28       140      32.0
           DTJ-15     15    147.0    238       297        60        85        328       30       140      42.0
           DTJ-25     25    245.1    320       368        60        125       364       34       150      100.0
                                                                   * Nominal Jack Capacity in ton - see kN values for actual capacity
