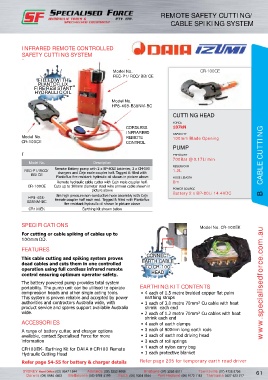

Page 71 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

REMOTE SAFETY CUTTING/
CABLE SPIKING SYSTEM

INFRARED REMOTE CONTROLLED
SAFETY CUTTING SYSTEM

Model No. CR-100CE
REC-P1/RCO/BB/CE
FILLED WITH
PLANTOFLUX
FIRE RESISTANT
HYDRAULIC OIL
Model No.
HP8-408-B38NM-BC

CUTTING HEAD
FORCE
CORDLESS 107kN
INFRAREED CAPACITY
Model No. REMOTE 100mm Blade Opening
CR-100CE CONTROL
PUMP
ITEMS SOLD SEPERATELY, REFER TABLE BELOW PRESSURE
700Bar @ 0.17L/min
Model No. Description B CABLE CUTTING
RESERVOIR
REC-P1/RCO/ Remote Battery pump with 2 x BP-80LI batteries, 2 x CH-100 1.2L
chargers and Cejn male coupler half. Tagged & filled with
BB/CE Plantoflux fire resistant hydraulic oil shown in picture above HOSE LENGTH
Remote hydraulic cable cutter with Cejn male coupler half. 8m
CR-100CE Cuts up to 100mm diameter steel wire armour cable shown in
picture above POWER SOURCE
Battery 2 x BP-80Li 14.4VDC
HP8-408- 8m high pressure non-conductive hose assembly with Cejn
B38NM-BC female coupler half each end. Tagged & filled with Plantoflux
fire resistant hydraulic oil shown in picture above
CR100EK Earthing Kit shown below

SPECIFICATIONS Model No. CR-100EK

For cutting or cable spiking of cables up to
100mmOD.

FEATURES
CONNECT
This cable cutting and spiking system proves EARTH CABLE
dead cables and cuts them in one controlled
operation using full cordless infrared remote TO CR-100
control ensuring optimum operator safety. HEAD
The battery powered pump provides total system www.specialisedforce.com.au
portability. The pump unit can be utilised to operate EARTHING KIT CONTENTS
compression heads and other single acting tools. • 4 each of 1.5 metre braided copper flat palm
This system is proven reliable and accepted by power earthing straps
authorities and contractors Australia wide, with • 1 each of 3.0 metre 70mm² Cu cable with heat
product service and spares support available Australia shrink each end
wide. • 2 each of 1.2 metre 70mm² Cu cables with heat
shrink each end
ACCESSORIES • 4 each of earth clamps

A range of battery cutter, and charger options • 3 each of 900mm long earth rods
available, contact Specialised Force for more • 1 each of earth rod driving head
information • 3 each of roll springs
CR100EK- Earthing Kit for DAIA #CR100 Remote • 1 each of nylon carry bag
Hydraulic Cutting Head • 1 each protective blanket
Refer page 54-55 for battery & charger details Refer page 235 for temporary earth road driver
