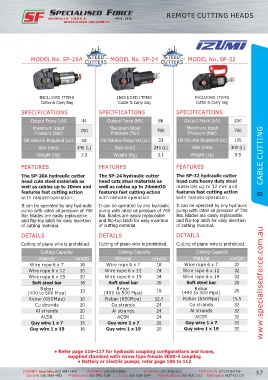

Page 67 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

REMOTE CUTTING HEADS

STEEL
STEEL
MODEL No. SP-20A CUTTERS MODEL No. SP-24 CUTTERS MODEL No. SP-32

INCLUDED ITEMS INCLUDED ITEMS INCLUDED ITEMS
Cutter & Carry Bag Cutter & Carry bag Cutter & Carry bag
SPECIFICATIONS SPECIFICATIONS SPECIFICATIONS

Output Force (kN) 44 Output Force (kN) 86 Output Force (kN) 250
Maximum Input Maximum Input Maximum Input 700
Pressure (Bar) 700 Pressure (Bar) 700 Pressure (Bar)
Oil Volume Required (cc) 18 Oil Volume Required (cc) 33 Oil Volume Required (cc) 135
Size (mm) 240 (L) Size (mm) 245 (L) Size (mm) 300 (L)
Weight (kg) 2.3 Weight (kg) 3.1 Weight (kg) 9.9

FEATURES FEATURES FEATURES B CABLE CUTTING

The SP-20A hydraulic cutter The SP-24 hydraulic cutter The SP-32 hydraulic cutter
head cuts steel materials as head cuts steel materials as head cuts heavy duty steel
well as cables up to 20mm and well as cables up to 24mmOD materials up to 32 mm and
features fast cutting action features fast cutting action features fast cutting action
with remote operation. with remote operation. with remote operation.
It can be operated by any hydraulic It can be operated by any hydraulic It can be operated by any hydraulic
pump with rated oil pressure of 700 pump with rated oil pressure of 700 pump with rated oil pressure of 700
Bar. Blades are easily replaceable Bar. Blades are easily replaceable Bar. Blades are easily replaceable
and flip-top latch for easy insertion and flip-top latch for easy insertion and flip-top latch for easy insertion
of cutting material. of cutting material. of cutting material.
DETAILS DETAILS DETAILS

Cutting of piano wire is prohibited. Cutting of piano wire is prohibited. Cutting of piano wire is prohibited.
Cutting Capacity Cutting Capacity Cutting Capacity
Material mmOD Material mmOD Material mmOD
Wire rope 6 x 7 16 Wire rope 6 x 7 18 Wire rope 6 x 7 32
Wire rope 6 x 12 20 Wire rope 6 x 12 24 Wire rope 6 x 12 32
Wire rope 6 x 19 20 Wire rope 6 x 19 24 Wire rope 6 x 19 32
Soft steel bar 16 Soft steel bar 20 Soft steel bar 25 www.specialisedforce.com.au
Rebar Rebar Rebar 25
(400 to 500 Mpa) 13 (400 to 500 Mpa) 16 (400 to 500 Mpa)
Rebar (650Mpa) 10 Rebar (650Mpa) 12.4 Rebar (650Mpa) 15.5
Cu strands 20 Cu strands 24 Cu strands 32
Al strands 20 Al strands 24 Al strands 32
ACSR 21 ACSR 24 ACSR 32
Guy wire 1 x 7 15 Guy wire 1 x 7 20 Guy wire 1 x 7 32
Guy wire 1 x 19 16 Guy wire 1 x 19 20 Guy wire 1 x 19 32

• Refer page 116–117 for hydraulic coupling configurations and hoses,
supplied standard with screw type female 3050-3 coupling
• Battery or Electric pumps, refer page 106 to 112
