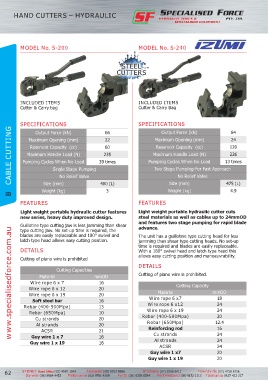

Page 72 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

HAND CUTTERS – HYDRAULIC

MODEL No. S-200 MODEL No. S-240

STEEL
CUTTERS

INCLUDED ITEMS INCLUDED ITEMS
Cutter & Carry bag Cutter & Carry Bag

SPECIFICATIONS 66 SPECIFICATIONS 84
B CABLE CUTTING Pumping Cycles When No Load 39 times Pumping Cycles When No Load 13 times
Output Force (kN)
Output Force (kN)
22
24
Maximum Opening (mm)
Maximum Opening (mm)
120
Reservoir Capacity (cc)
Reservoir Capacity (cc)
60
Maximum Handle Load (N)
235
226
Maximum Handle Load (N)
Two Stage Pumping-For Fast Approach
Single Stage Pumping
No Relief Valve
No Relief Valve
Size (mm)
Size (mm)
3
Weight (kg)
4.9
FEATURES 400 (L) FEATURES Weight (kg) 475 (L)
Light weight portable hydraulic cutter features Light weight portable hydraulic cutter cuts
new series, heavy duty improved design. steel materials as well as cables up to 24mmOD
and features two stage pumping for rapid blade
Guillotine type cutting jaw is less jamming than shear
www.specialisedforce.com.au
type cutting jaw. No set-up time is required, the advance.
blades are easily replaceable and 180° swivel and The unit has a guillotine type cutting head for less
latch type head allows easy cutting position. jamming than shear type cutting heads. No set-up
time is required and blades are easily replaceable.
DETAILS With a 180° swivel head and latch type head this
allows easy cutting position and manoeuvrability.
Cutting of piano wire is prohibited
DETAILS
Cutting Capacities
Material mmOD Cutting of piano wire is prohibited.
Wire rope 6 x 7 16 Cutting Capacity
Wire rope 6 x 12 20
Wire rope 6 x 19 20 Material mmOD
Soft steel bar 16 Wire rope 6 x7 18
Rebar (400-500Mpa) 13 Wire rope 6 x12 24
Rebar (650Mpa) 10 Wire rope 6 x 19 24
Cu strands 20 Rebar (400-500Mpa) 20
Al strands 20 Rebar (650Mpa) 12.4
ACSR 21 Reinforcing rod 16
Guy wire 1 x 7 16 Cu strands 24
Guy wire 1 x 19 16 Al strands 24
ACSR 24
Guy wire 1 x7 20
Guy wire 1 x 19 20
