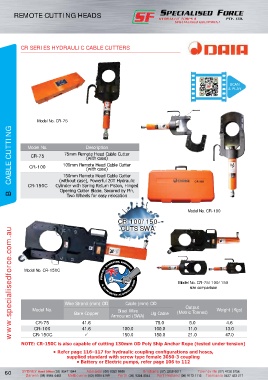

Page 70 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

REMOTE CUTTING HEADS

CR SERIES HYDRAULIC CABLE CUTTERS

SCAN
& PLAY

Model No. CR-75
B CABLE CUTTING Model No. Cylinder with Spring Return Piston, Hinged

Description
75mm Remote Head Cable Cutter
CR-75
(with case)
100mm Remote Head Cable Cutter
CR-100
(with case)
150mm Remote Head Cable Cutter
(without case), Powerful 20T Hydraulic
CR-150C
Opening Cutter Blade, Secured by Pin,
Two Wheels for easy relocation

Model No. CR-100
CR-100/150
CUTS SWA
www.specialisedforce.com.au

Model No. CR-150C
PROUDLY MARKETED, SERVICED

& SUPPORTED AUSTRALIA WIDE Model No. CR-75/100/150
size comparison

Wire Strand (mm) OD Cable (mm) OD
Model No. Steel Wire Output Weight (Kgs)
Bare Copper Armoured (SWA) Ug Cable (Metric Tonnes)
CR-75 41.6 75.0 5.0 4.6
CR-100 41.6 100.0 100.0 11.0 13.0
CR-150C  150.0 150.0 21.0 47.0
NOTE: CR-150C is also capable of cutting 130mm OD Poly Ship Anchor Rope (tested under tension)
• Refer page 116–117 for hydraulic coupling configurations and hoses,
supplied standard with screw type female 3050-3 coupling
• Battery or Electric pumps, refer page 106 to 112
