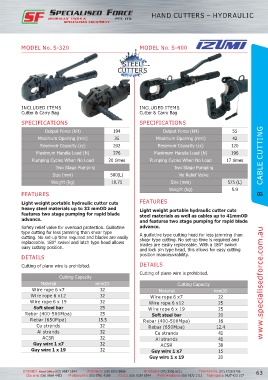

Page 73 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

HAND CUTTERS – HYDRAULIC

MODEL No. S-320 MODEL No. S-400

STEEL
CUTTERS

INCLUDED ITEMS INCLUDED ITEMS
Cutter & Carry Bag Cutter & Carry Bag

SPECIFICATIONS SPECIFICATIONS

Output Force (kN) 194 Output Force (kN) 55
Maximum Opening (mm) 35 Maximum Opening (mm) 42
Reservoir Capacity (cc) 202 Reservoir Capacity (cc) 120
Maximum Handle Load (N) 276 Maximum Handle Load (N) 196
Pumping Cycles When No Load 20 times Pumping Cycles When No Load 17 times B CABLE CUTTING
Two Stage Pumping Two Stage Pumping
Size (mm) 580(L) No Relief Valve
Weight (kg) 10.75 Size (mm) 575 (L)
Weight (kg) 5.9
FEATURES
Light weight portable hydraulic cutter cuts FEATURES
heavy steel materials up to 32 mmOD and Light weight portable hydraulic cutter cuts
features two stage pumping for rapid blade steel materials as well as cables up to 41mmOD
advance. and features two stage pumping for rapid blade
Safety relief valve for overload protection. Guillotine advance.
type cutting for less jamming than shear type A guillotine type cutting head for less jamming than
cutting. No set-up time required and blades are easily shear type cutting. No set-up time is required and
replaceable. 180° swivel and latch type head allows blades are easily replaceable. With a 180° swivel
easy cutting position. and lock pin type head, this allows for easy cutting
DETAILS position manoeuvrability.

Cutting of piano wire is prohibited. DETAILS
Cutting of piano wire is prohibited.
Cutting Capacity
Material mmOD Cutting Capacity www.specialisedforce.com.au
Wire rope 6 x7 32 Material mmOD
Wire rope 6 x12 32 Wire rope 6 x7 22
Wire rope 6 x 19 32 Wire rope 6 x12 25
Soft steel bar 25 Wire rope 6 x 19 25
Rebar (400-500Mpa) 25 Soft steel bar 20
Rebar (650Mpa) 15.5 Rebar (400-500Mpa) 16
Cu strands 32 Rebar (650Mpa) 12.4
Al strands 32 Cu strands 41
ACSR 32 Al strands 41
Guy wire 1 x7 32 ACSR 38
Guy wire 1 x 19 32 Guy wire 1 x7 15
Guy wire 1 x 19 20
