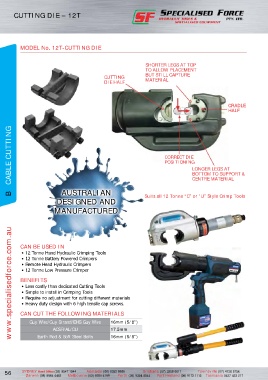

CUTTING DIE – 12T
MODEL No. 12T-CUTTING DIE
SHORTER LEGS AT TOP
TO ALLOW PLACEMENT
CUTTING BUT STILL CAPTURE
MATERIAL
DIE HALF
CRADLE
HALF
B CABLE CUTTING CORRECT DIE
POSITIONING
LONGER LEGS AT
BOTTOM TO SUPPORT &
CENTRE MATERIAL
AUSTRALIAN
DESIGNED AND Suits all 12 Tonne “C” or “U” Style Crimp Tools
MANUFACTURED
www.specialisedforce.com.au
CAN BE USED IN
• 12 Tonne Hand Hydraulic Crimping Tools
• 12 Tonne Battery Powered Crimpers
• Remote Head Hydraulic Crimpers
• 12 Tonne Low Pressure Crimper
BENEFITS
• Less costly than dedicated Cutting Tools
• Simple to install in Crimping Tools
• Require no adjustment for cutting different materials
• Heavy duty design with 6 high tensile cap screws.
CAN CUT THE FOLLOWING MATERIALS
Guy Wire/Guy Strand/EHS Guy Wire 16mm (5/8”)
ACSR/AL/CU 17.5mm
Earth Rod & Soft Steel Bolts 16mm (5/8”)
