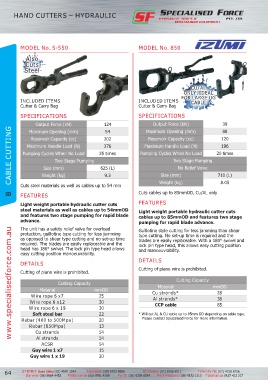

Page 74 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

HAND CUTTERS – HYDRAULIC

MODEL No. S-550 MODEL No. 850

Also
Cuts
Steel

CU/AL
ONLY, IDEAL
FOR LARGE UG
INCLUDED ITEMS INCLUDED ITEMS CABLE
Cutter & Carry Bag Cutter & Carry Bag

SPECIFICATIONS SPECIFICATIONS

39
Output Force (kN)
Output Force (kN) 124 Maximum Opening (mm) 120
B CABLE CUTTING Pumping Cycles When No Load 25 times Pumping Cycles When No Load 20 times
88
Maximum Opening (mm)
54
202
Reservoir Capacity (cc)
Reservoir Capacity (cc)
196
Maximum Handle Load (N)
276
Maximum Handle Load (N)
Two Stage Pumping
Two Stage Pumping
No Relief Valve
Size (mm)
625 (L)
Size (mm)
710 (L)
9.3
Weight (kg)
8.05
Weight (kg)
Cuts steel materials as well as cables up to 54 mm
FEATURES
FEATURES
Light weight portable hydraulic cutter cuts Cuts cables up to 85mmOD, Cu/AL only
steel materials as well as cables up to 54mmOD Light weight portable hydraulic cutter cuts
and features two stage pumping for rapid blade cables up to 85mmOD and features two stage
advance. pumping for rapid blade advance.
The unit has a safety relief valve for overload Guillotine style cutting for less jamming than shear
www.specialisedforce.com.au
protection, guillotine type cutting for less jamming type cutting. No set-up time is required and the
as opposed to shear type cutting and no set-up time blades are easily replaceable. With a 180° swivel and
required. The blades are easily replaceable and the lock pin type head, this allows easy cutting position
head has 180° swivel. The lock pin type head allows and manoeuvrability.
easy cutting position manoeuvrability.
DETAILS
DETAILS
Cutting of piano wire is prohibited.
Cutting of piano wire is prohibited.
Cutting Capacity
Cutting Capacity
Material
Material mmOD Cu strands* mmOD
28
Wire rope 6 x7 25 Al strands* 38
Wire rope 6 x12 30 CCP cable 85
Wire rope 6 x 19 30
Soft steel bar 22 * Will cut AL & CU cable up to 85mm OD depending on cable type.
Rebar (400 to 500Mpa) 20 Please contact Specialised Force for more information.
Rebar (650Mpa) 13
Cu strands 54
Al strands 54
ACSR 54
Guy wire 1 x7 15
Guy wire 1 x 19 20
