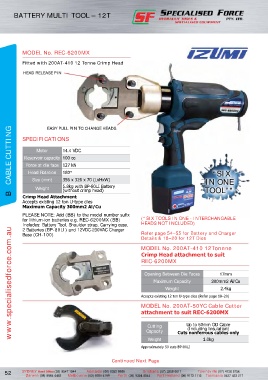

Page 62 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

BATTERY MULTI TOOL – 12T

MODEL No. REC-6200MX
Fitted with 200AT-410 12 Tonne Crimp Head

HEAD RELEASE PIN

EASY PULL PIN TO CHANGE HEADS
B CABLE CUTTING SPECIFICATIONS IN ONE

14.4 VDC
Motor
Reservoir capacity 100 cc
Force at die face 127 kN
“SIX
Head Rotation 180°
356 x 326 x 70 (LxHxW)
Size (mm)
5.8kg with BP-80LI Battery
Weight
(without crimp head)
Crimp Head Attachment
Accepts existing 12 ton U-type dies TOOL”*
Maximum Capacity 300mm2 Al/Cu

PLEASE NOTE: Add (BB) to the model number sufix
for lithium-ion batteries e.g. REC-6200MX (BB) (*SIX TOOLS IN ONE - INTERCHANGABLE
Includes: Battery Tool, Shoulder strap, Carrying case, HEADS NOT INCLUDED)
www.specialisedforce.com.au
2 Batteries (BP-80LI) and 12VDC-230VAC Charger
Base (CH-100) Refer page 54–55 for Battery and Charger
Details & 18–20 for 12T Dies
MODEL No. 200AT-410 12Tonnne
Crimp Head attachment to suit
REC-6200MX

Opening Between Die Faces 17mm
Maximum Capacity 300mm2 Al/Cu
Weight 2.4kg
Accepts existing 12 ton U-type dies (Refer page 18–20)

MODEL No. 200AT-50YC Cable Cutter
attachment to suit REC-6200MX

Cutting Up to 50mm OD Cable
(Including Insulation)
Capacity Cuts nonferrous cables only
Weight 1.0kg
Approximately 50 cuts BP-80LI

Continued Next Page
