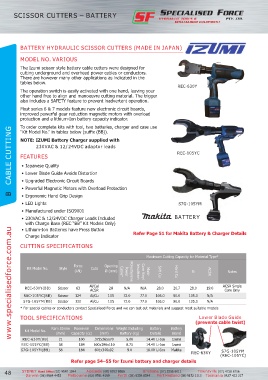

Page 58 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

SCISSOR CUTTERS – BATTERY

BATTERY HYDRAULIC SCISSOR CUTTERS (MADE IN JAPAN)

MODEL NO. VARIOUS

The Izumi scissor style battery cable cutters were designed for
cutting underground and overhead power cables or conductors.
There are however many other applications as indicated in the
tables below.
REC-630Y
The operation switch is easily activated with one hand, leaving your
other hand free to align and manoeuvre cutting material. The trigger
also includes a SAFETY feature to prevent inadvertent operation.
Most series 6 & 7 models feature new electronic circuit boards,
improved powerful gear reduction magnetic motors with overload
protection and a lithium-Ion battery capacity indicator.
To order complete kits with tool, two batteries, charger and case use
B CABLE CUTTING 230VAC & 12/24VDC adaptor leads REC-105YC
“Kit Model No.” in tables below (suffix (BB)).
NOTE: IZUMI Battery Charger supplied with

FEATURES

• Japanese Quality
• Lower Blade Guide Avoids Distortion
• Upgraded Electronic Circuit Boards
• Powerful Magnetic Motors with Overload Protection
• Ergonomic Hand Grip Design

• LED Lights S7G-105YM
• Manufactured under ISO9001
• 230VAC & 12/24VDC Charger Leads Included BATTERY
with Charge Base (REC “BB” Kit Models Only)
www.specialisedforce.com.au
• Lithium-Ion Batteries have Press Button
Charge Indicator Refer Page 51 for Makita Battery & Charger Details
CUTTING SPECIFICATIONS

Maximum Cutting Capacity for Material Type*

Force Opening
Kit Model No. Style Cuts
(kN) Ø (mm) Cable* Power Polyethylene Insulation Core Vinyl Multi- Soft Cu Hard Cu Al ACSR Notes

Al/Cu/ ACSR Single
REC-630Y(BB) Scissor 63 28 N/A N/A 28.0 20.7 28.0 19.0
ACSR Core Only
REC-105YC(BB) Scissor 124 Al/Cu 105 72.0 77.0 105.0 90.0 105.0 N/A
S7G-105YM(BB) Scissor 120 Al/Cu 105 72.0 77.0 105.0 90.0 105.0 N/A
* For special cables or conductors contact Specialised Force and we can test cut materials and suggest most suitable models
TOOL SPECIFICATIONS Lower Blade Guide
(prevents cable twist)
Ram Stroke Reservoir Dimensions Weight Including Battery Battery
Kit Model No.
(mm) Capacity (cc) (mm) Battery (kg) Details Brand
REC-630Y(BB) 21 100 372x265x70 5.00 14.4V Li-Ion Izumi
REC-105YC(BB) 58 184 600x390x110 8.75 14.4V Li-Ion Izumi
S7G-105YM(BB) 58 184 601x346x92 9.0 18.0V Li-Ion Makita S7G-105YM
REC-630Y
(REC-105YC)
Refer page 54–55 for Izumi battery and charger details
