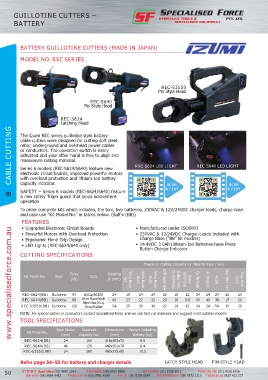

Page 60 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

GUILLOTINE CUTTERS –
BATTERY

BATTERY GUILLOTINE CUTTERS (MADE IN JAPAN)

MODEL NO. REC SERIES

REC-S3550
Pin Style Head

REC-S640
Pin Style Head

REC-S624
Latching Head
B CABLE CUTTING rebar, underground and overhead power cables REC-S624 LED LIGHT REC-S640 LED LIGHT
The Izumi REC series guillotine style battery
cable cutters were designed for cutting soft steel,

or conductors. The operation switch is easily
activated and your other hand is free to align and
manoeuvre cutting material.
Series 6 models (REC-S624/S640) feature new
electronic circuit boards, improved powerful motors
with overload protection and lithium-Ion battery
capacity indicator.
SCAN
SCAN
SAFETY – Series 6 models (REC-S624/S640) feature
a new safety Triger guard that stops inadvertent
operation & PLAY & PLAY
To order complete kits which includes, the tool, two batteries, 230VAC & 12V/24VDC charger leads, charge base
and case use “Kit Model No.” in tables below. (Suffix (BB))
FEATURES
• Upgraded Electronic Circuit Boards • Manufactured under ISO9001
www.specialisedforce.com.au
• Powerful Motors with Overload Protection • 230VAC & 12/24VDC Charger Leads Included with
• Ergonomic Hand Grip Design Charge Base (“BB” kit models)
• LED Lights (REC-S624/640 only) • 14.4VDC 3.0Ah Lithium-Ion Batteries have Press
Button Charge Indicator
CUTTING SPECIFICATIONS
Maximum Cutting Capacity for Material Type (mm)

Force Opening
Kit Model No. Style Cuts
(kN) Ø (mm) 6x7 Wire Rope 6x12 Wire Rope 6x19 Wire Rope Soft Steel Bar to 500Mpa) ReBar (400 (650Mpa) Rebar Cu Strands Al Strands ACSR Guy Wire 1x7 1x19 Guy Wire

REC-S624(BB) Guillotine 84 Al/Cu/ACSR/ 24 18 24 24 20 16 12 24 24 24 20 20
REC-S640(BB) Guillotine 68 Wire Rope/Soft 40 22 22 22 20 16 9.6 40 40 38 15 20
Steel Bar/Guy
REC-S3550(BB) Guillotine 120 Wire/ReBar 54 25 30 30 22 19 13 54 54 54 15 20
NOTE: For special cables or conductors contact Specialised Force and we can test cut materials and suggest most suitable models
TOOL SPECIFICATIONS

Ram Stroke Reservoir Dimensions Weight Including
Kit Model No.
(mm) Capacity (cc) (mm) Battery (kg)
REC-S624(BB) 24 100 316x263x70 5.0
REC-S640(BB) 40 135 442x351x78 6.4
REC-S3550(BB) 54 280 490x275x90 10.0

Refer page 54–55 for battery and charger details LATCH STYLE HEAD PIN STYLE HEAD
