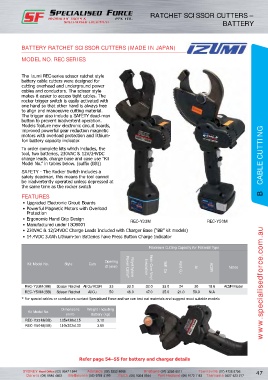

Page 57 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19
P. 57
RATCHET SCISSOR CUTTERS –
BATTERY
BATTERY RATCHET SCISSOR CUTTERS (MADE IN JAPAN)
MODEL NO. REC SERIES
The Izumi REC series scissor ratchet style
battery cable cutters were designed for
cutting overhead and underground power
cables and conductors. The scissor style
makes it easier to access tight cables. The
rocker trigger switch is easily activated with
one hand so that other hand is always free
to align and manoeuvre cutting material.
The trigger also include a SAFETY dead-man
button to prevent inadvertent operation.
Models feature new electronic circuit boards,
improved powerful gear reduction magnetic
motors with overload protection and lithium-
Ion battery capacity indicator.
To order complete kits which includes, the
tool, two batteries, 230VAC & 12V/24VDC
charge leads, charge base and case use “Kit
Model No.” in tables below. (suffix (BB)) B CABLE CUTTING
SAFETY - The Rocker Switch includes a
safety deadman, this means the tool cannot
be inadvertently operated unless depressed at
the same time as the rocker switch
FEATURES
• Upgraded Electronic Circuit Boards
• Powerful Magnetic Motors with Overload
Protection
• Ergonomic Hand Grip Design REC-Y33M REC-Y50M
• Manufactured under ISO9001
• 230VAC & 12/24VDC Charge Leads Included with Charger Base (“BB” kit models)
• 14.4VDC 3.0Ah Lithium-Ion Batteries have Press Button Charge Indicator
Maximum Cutting Capacity for Material Type
Opening
Kit Model No. Style Cuts
Ø (mm) Power Cable* Polyethylene Insulation Multi-Core Vinyl Soft Cu Hard Cu Al ACSR Notes
REC-Y33M(BB) Scissor Ratchet Al/Cu/ACSR 33 33.0 32.0 33.0 24 30 18.6 ACSR Model www.specialisedforce.com.au
REC-Y50M(BB) Scissor Ratchet Al/Cu 50 46.0 47.0 35.0 21.0 50.0 N/A
* For special cables or conductors contact Specialised Force and we can test cut materials and suggest most suitable models
Dimensions Weight Including
Kit Model No.
(mm) Battery (kg)
REC-Y33M(BB) 105x430x115 3.10
REC-Y50M(BB) 110x302x130 3.65
Refer page 54–55 for battery and charger details
