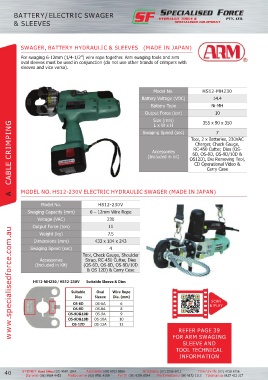

Page 50 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

BATTERY/ELECTRIC SWAGER
& SLEEVES

SWAGER, BATTERY HYDRAULIC & SLEEVES (MADE IN JAPAN)

For swaging 6-12mm (1/4-1/2”) wire rope together. Arm swaging tools and arm
oval sleeves must be used in conjunction (do not use other brands of crimpers with
sleeves and vice versa).

Model No. HS12-MH230
Battery Voltage (VDC) 14.4
Battery Type Ni-MH
Output Force (ton) 10
Size (mm) Tool, 2 x Batteries, 230VAC
355 x 90 x 350
A CABLE CRIMPING (Included in kit) OS12D), Die Removing Tool,
L x W x H
Swaging Speed (sec)
7
Charger, Check Gauge,
RC-450 Cutter, Dies (OS-
Accessories
6D, OS-8D, OS-9D/10D &

CD Operational Video &
Carry Case

MODEL NO. HS12-230V ELECTRIC HYDRAULIC SWAGER (MADE IN JAPAN)

Model No. HS12-230V
Swaging Capacity (mm) 6 – 12mm Wire Rope
Voltage (VAC) 230
Output Force (ton) 11
www.specialisedforce.com.au
Weight (kg) 7.5
Dimensions (mm) 433 x 104 x 243
Swaging Speed (sec) 4
Tool, Check Gauge, Shoulder
Accessories Strap, RC-450 Cutter, Dies
(Included in Kit) (OS-6D, OS-8D, OS-9D/10D
& OS 12D) & Carry Case

HS12-MH230 / HS12-230V Suitable Sleeve & Dies
Suitable Sleeve & Dies
Suitable Oval Wire Rope
Dies Sleeve Dia. (mm)
SCAN
OS-6D OS-6A 6 & PLAY
OS-8D OS-8A 8
OS-9D&10D OS-9A 9
OS-9D&10D OS-10A 10
OS-12D OS-12A 12
REFER PAGE 39
FOR ARM SWAGING
SLEEVE AND
TOOL TECHNICAL
INFORMATION
