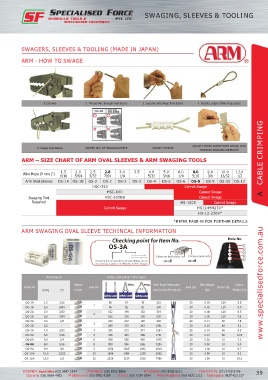

Page 49 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19
P. 49
SWAGING, SLEEVES & TOOLING
SWAGERS, SLEEVES & TOOLING (MADE IN JAPAN)
ARM - HOW TO SWAGE
1. Cut wire 2. Thread Wire through Oval Sleeve 3. Loop the Wire Rope from Eyelet 4. Decide Length of Wire Rope Eyele
A CABLE CRIMPING
QUALITY CHECK SLEEVE WITH GAUGE, PASS
5. Swage Oval Sleeve PROPER WAY OF SWAGING SLEEVE SWAGE 3 POINTS
THROUGH SWAGING COMPLETE!
ARM – SIZE CHART OF ARM OVAL SLEEVES & ARM SWAGING TOOLS
1.5 2.0 2.5 2.8 3.0 3.5 4.0 5.0 6.0 8.0 9.0 10.0 12.0
Wire Rope Ø mm (“)
1/16 5/64 3/32 7/64 1/8 - 5/32 3/16 1/4 5/16 3/8 13/32 1/2
Arm Oval Sleeves OS-1A OS-1B OS-2 OS-2 OS-3 OS-3 OS-4 OS-5 OS-6 OS-8 OS-9 OS-10 OS-12
HSC-350 Cannot Swage
HSC-600 Cannot Swage
Swaging Tool HSC-600BB Cannot Swage
Required HS-1000 Cannot Swage
Cannot Swage HS12-MH230*
HS-12-230V*
*REFER PAGE 40 FOR FURTHER DETAILS
ARM SWAGING OVAL SLEEVE TECHINCAL INFORMATION
Wire Rope Ø Safety Load (using 2 wire ropes)
Sleeve Wire Rope Destruction Item Weight Carton www.specialisedforce.com.au
Model No Hole No. Pack Qty Carton Qty
(mm) (“) Image Load (using Arm equip) (kg) Weight (kg)
OS-1A 1.5 1/16 56 54 48 210 30 0.03 120 5.5
OS-1B 2.0 5/64 1 96 92 82 330 30 0.03 120 5.0
OS-2A 2.5 3/32 2 152 148 132 519 20 0.06 120 8.5
OS-2B 2.8 7/64 182 176 158 630 20 0.05 120 7.6
OS-3A 3.0 1/8 220 212 190 690 20 0.11 60 7.8
OS-3B 3.5 - 3 280 270 242 1001 20 0.10 60 7.1
OS-4A 4.0 5/32 4 282 272 244 1204 20 0.10 60 9.5
OS-5A 5.0 3/16 5 446 430 386 1731 20 0.13 60 12.9
OS-6A 6.0 1/4 6 556 536 480 1975 20 0.30 10 3.2
OS-8A 8.0 5/16 8 990 956 856 3284 20 0.50 10 5.0
OS-9A 9.0 3/8 9 1250 1206 1082 4018 20 1.00 10 9.7
OS-10A 10.0 13/32 10 1546 1494 1338 5365 20 0.90 10 9.2
OS-12A 12.0 1/2 12 2226 2150 1926 7456 20 1.90 10 18.3
