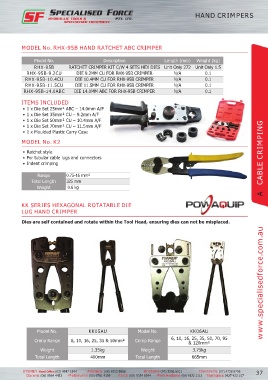

Page 47 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

HAND CRIMPERS

MODEL No. RHX-95B HAND RATCHET ABC CRIMPER

Model No. Description Length (mm) Weight (kg)
RHX-95B RATCHET CRIMPER KIT C/W 4 SETS HEX DIES Unit Only 272 Unit Only 1.5
RHX-95B-9.2CU DIE 9.2MM CU FOR RHX-95B CRIMPER N/A 0.1
RHX-95B-10.4CU DIE 10.4MM CU FOR RHX-95B CRIMPER N/A 0.1
RHX-95B-11.5CU DIE 11.5MM CU FOR RHX-95B CRIMPER N/A 0.1
RHX-95B-14.0ABC DIE 14.0MM ABC FOR RHX-95B CRIMPER N/A 0.1

ITEMS INCLUDED
• 1 x Die Set 25mm² ABC – 14.0mm A/F
• 1 x Die Set 35mm² CU – 9.2mm A/F
• 1 x Die Set 50mm² CU – 10.4mm A/F
• 1 x Die Set 70mm² CU – 11.5mm A/F
• 1 x Moulded Plastic Carry Case
MODEL No. K2

• Ratchet style
• For tubular cable lugs and connectors A CABLE CRIMPING
• Indent crimping

Range 0.75-16 mm²
Total Length 325 mm
Weight 0.6 kg

KK SERIES HEXAGONAL ROTATABLE DIE
LUG HAND CRIMPER
Dies are self contained and rotate within the Tool Head, ensuring dies can not be misplaced.

Model No. KK05AU Model No. KK06AU www.specialisedforce.com.au

Crimp Range 6, 10, 16, 25, 35 & 50mm² Crimp Range 6, 10, 16, 25, 35, 50, 70, 95
& 120mm²
Weight 1.35kg Weight 3.75kg
Total Length 400mm Total Length 665mm
